5V 300LED SMD5050 RGB Double SPI SK6813 Digital Led Strips

SK6813 is a update version based on the SK6812 smart leds, as long as the SK6813 has 2 SPI wires, when one SK6813 led out of work, the SPI signal can jump to the next led, in other words, breakpoint continue.

5V 300LED SMD5050 RGB Double SPI SK6813 Digital Led Strips

Overview:

5V 300LED SMD5050 RGB Double SPI SK6813 Digital Led Strips, Breakpoint Continue, Individual Addressable, 60led/m, Control IC built inside the LED, 60pixel/m, 5V, 18w/m, 10mm white or black PCB, 15cm JST connector;

Data sheet:

Product:	5V 300LED SMD5050 RGB Double SPI SK6813 Digital Led Strips
Item No.:	WTP-6813X60-5V-IP20
LED:	SK6813-SMD5050-RGB, 60led/m
View angle:	120°
IC Chip:	SK6813
Input voltage:	5V
Power:	18.0w/m
Size:	5000x10x2.0(mm), 5m/roll

Features

1) Addressable DC5V SK6813 LED Strips; Long life span 50,000+ hours;
2) Super bright 5050 SMD top LED, high intensity and reliability;
3) Absolutely addressable, each IC built inside a SMD5050-RGB LED;
4) SK6813 has 4 Wires input and output: Datax2, GND and Power+; one LED died, the rest LEDs can keep working;
6) One led one cut;
7) PWM 2KHz/m, Data transmit up to 800kbps, 256 grayscale effect;
8) Each IC control one led, individual controllable;

LED Strip wiring diagram SK6813
Application:

> Widely used for home decoration use, hotels, clubs, shopping malls
> Architectural decorative lighting, boutique atmosphere lighting
> Extensively applied in background lighting, concealed lighting, channel letter lighting
> Emergency & security lighting, advertisement sign lighting
> Decorative lights for holiday, event, show exhibition
> Applicable for automobile and bicycle decoration, border or contour lighting

Remark:

1) Do not use any acidic, alkaline adhesive fixing Product;
2) It is prohibited to make products with a hard object collision, friction;
3) Do not use your fingers to press LED;
4) Don’t make positive and negative reversed;
5) Don’t install when product is working;
6) Installation, repair and maintenance must be made by professional Person;
7) Before you use them make sure the power supply voltage to meet the requirements and wire connection correctly.

Order Info: (IP20/IP65/IP67/IP68)

SN	Model Number	LED Qty (led/m)	Pixel Qty (Pixel/m)	PCB Width (mm)	PCB Color	Operate Voltage	Power (w/m)	Packing (m/roll)
1	WTP-6813RGBx30	30led/m	30	10	W/B	5V	9.0	5
2	WTP-6813RGBx60	60led/m	60	10	W/B	5V	18.0	5
3	WTP-6813RGBx96	96led/m	96	10	W/B	5V	—	5
4	WTP-6813RGBx144	144led/m	144	12	W/B	5V	43.2	1

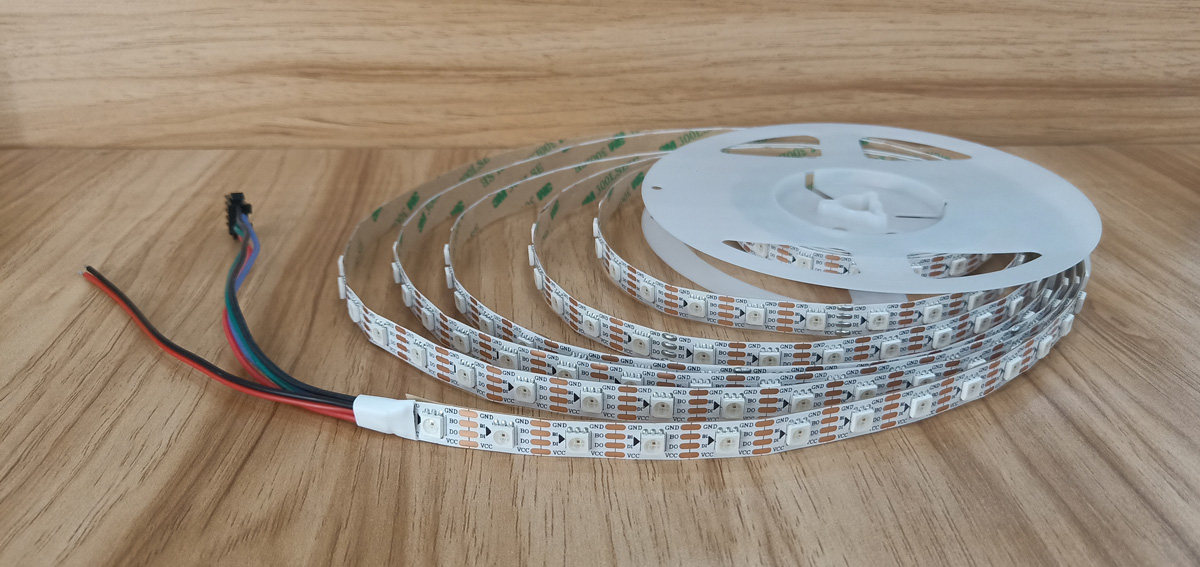

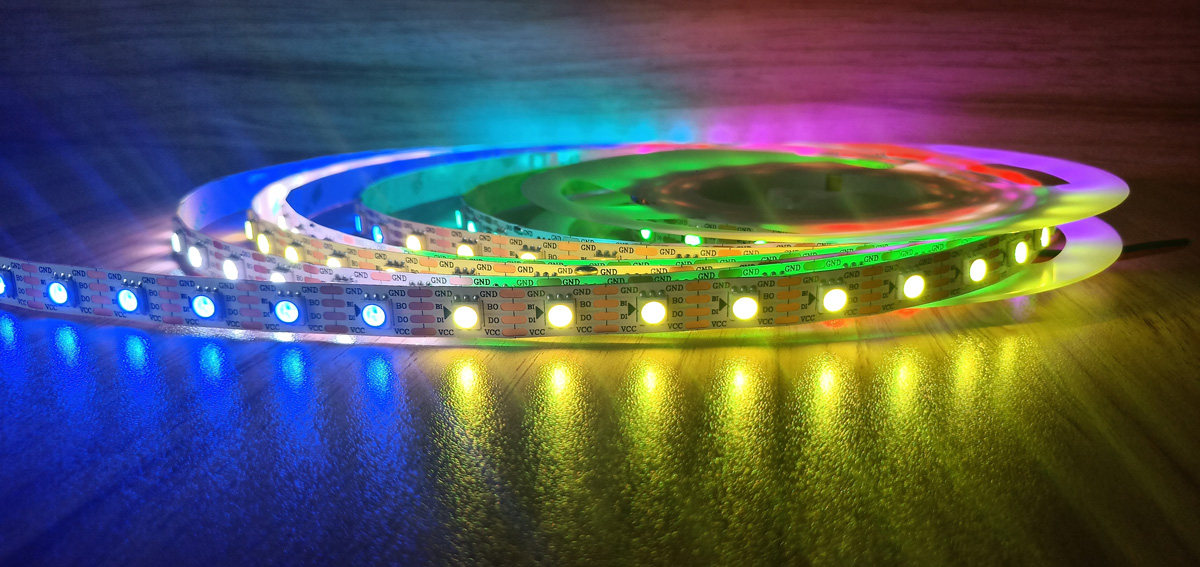

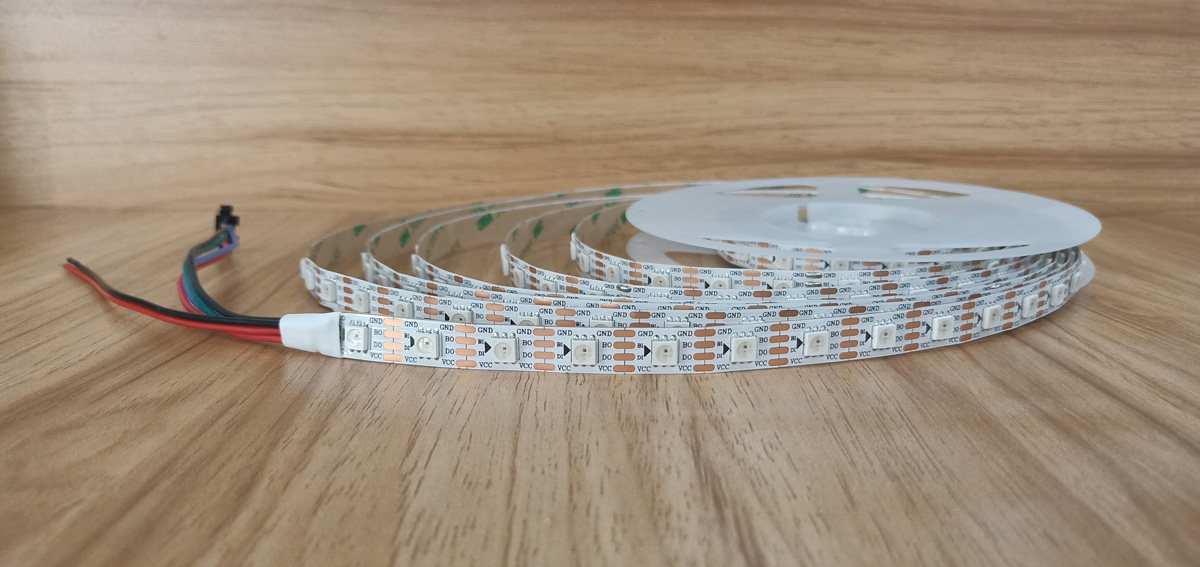

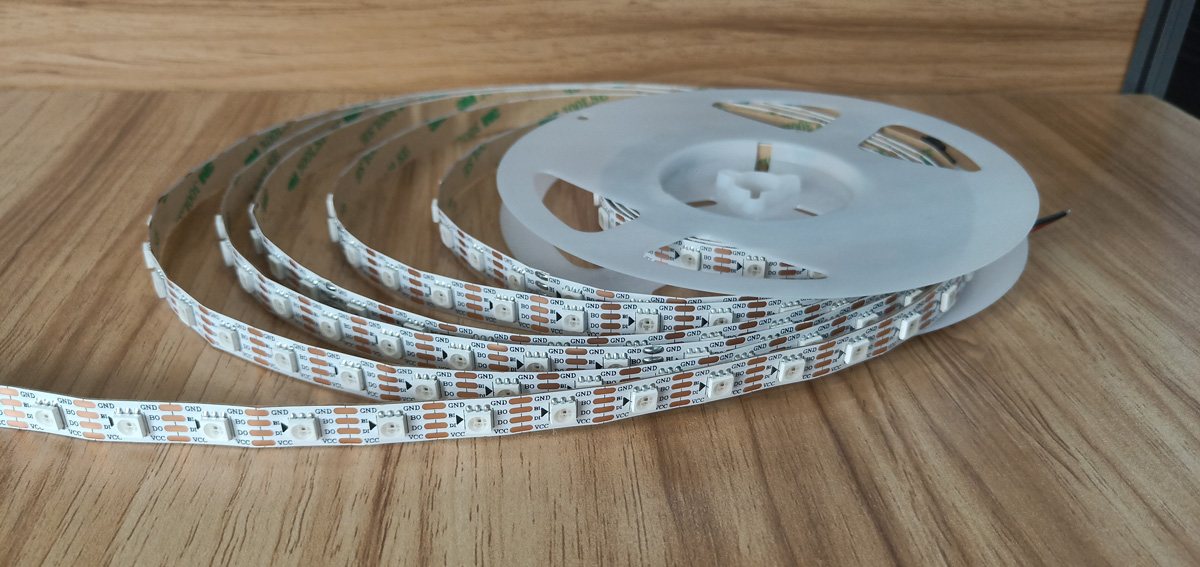

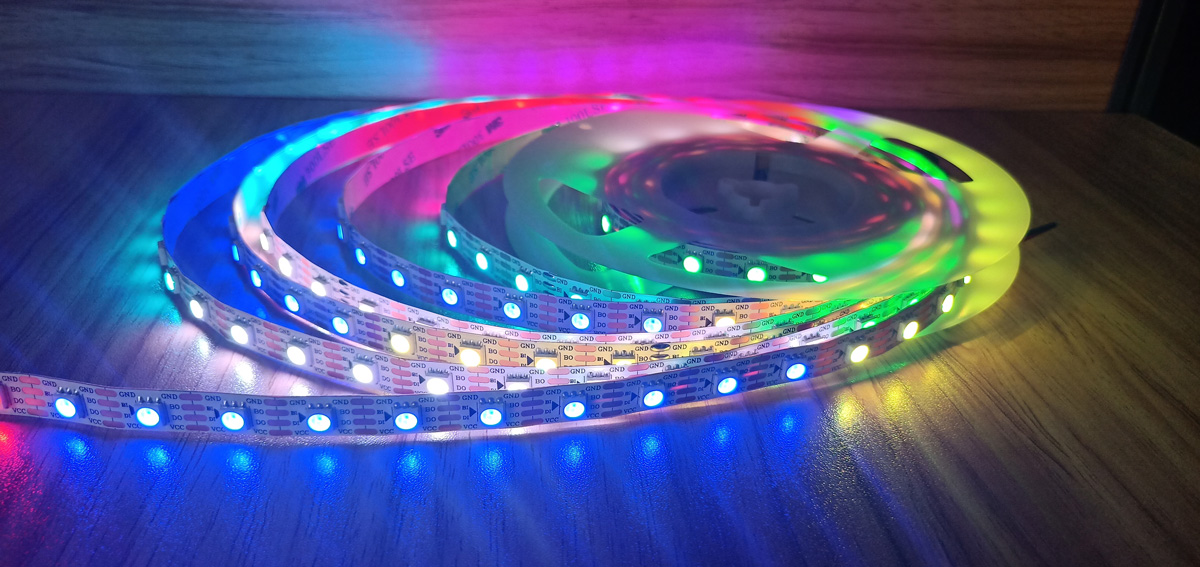

Photos

Features 5V 300LED SMD5050 RGB Double SPI SK6813 Digital Led Strips

5V 300LED WS2813 Digital Led Strips
