SK6812 4020 RGB Sideview Digital LED Strips | Side Emitting


One LED One Address | SK6812 4020 RGB Sideview Digital LED Strips

SK6812 4020 Digital LEd strips Overview:

One LED One Address | SK6812 4020 RGB Sideview Digital LED Strips, 120led/m, Control IC built inside the LED, 120pixel/m, 5V, 24.0w/m, 8mm white or black PCB, 15cm JST connector;

LED has the advantages of low voltage drive, environmental protection, energy saving, high brightness, large scattering angle, good consistency, ultra-low power, ultra-long life, etc. Integrate control circuits On the LED, the circuit becomes simpler, smaller, and easier to install.

Specifications:

  Product:   One LED One Address | SK6812 4020 RGB Sideview Digital LED Strips
  Item No.:    ADY-6812-4020-120-0805
  LED:    SK6812-SMD4020-RGB, 120led/m
  View angle:   120°
  IC Chip:   SK6812
  Input voltage:   5V
  Power:   24.0w/m
  Size:   5000x8x2.3(mm), 5m/roll

Features:

1) Addressable DC5V SK6812 4020 RGB side emitting LED Strips; Long life span 50,000+ hours;
2) Super bright 4020 SMD top LED, high intensity and reliability;
3) Absolutely addressable, each IC built inside a SMD4020-RGB LED;
4) SK6812 has 3 Wires input and output: Data, GND and Power+;

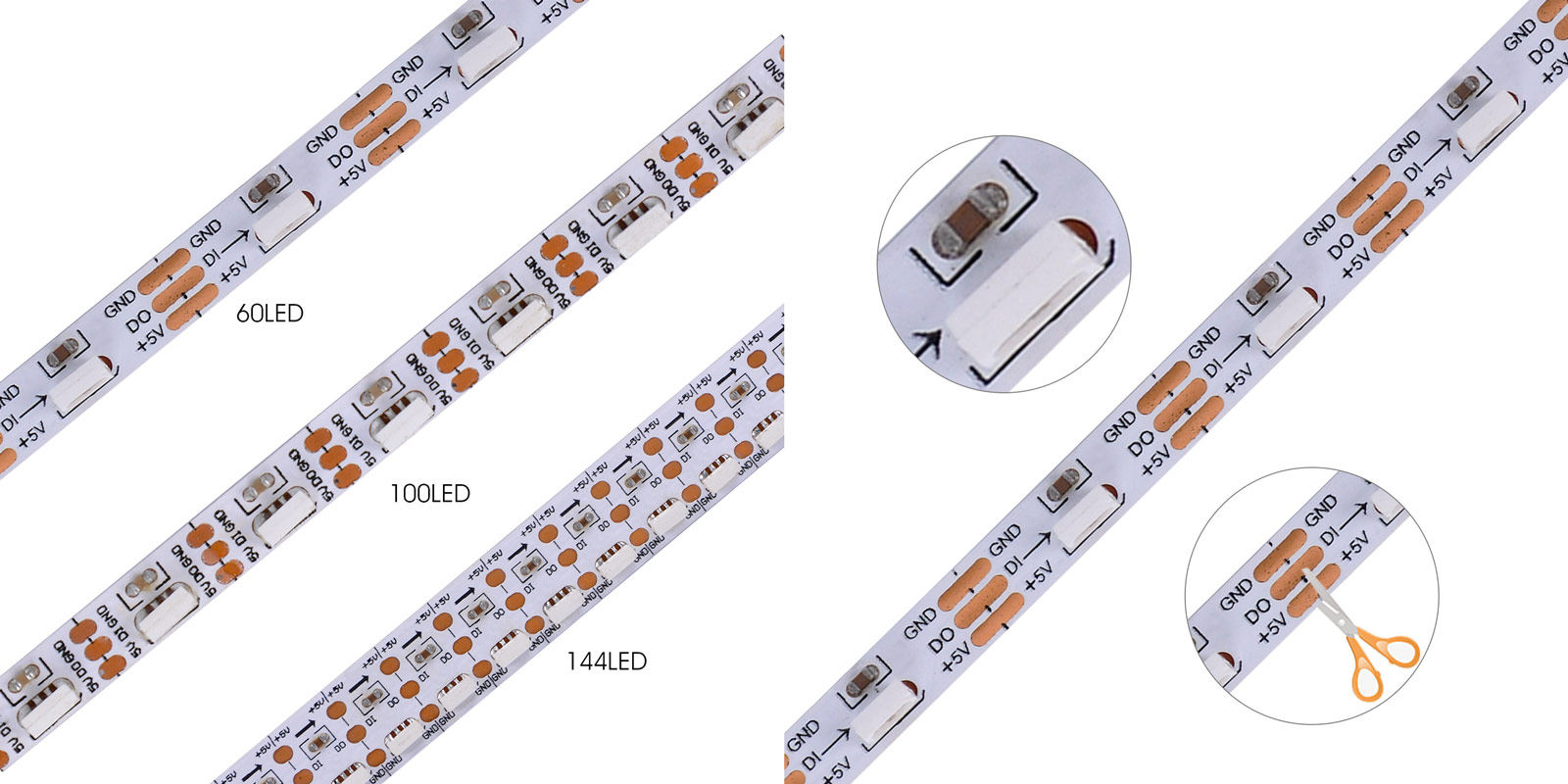

6) One led one cut;
7) PWM 2KHz/m, Data transmit up to 800kbps, 256 grayscale effect;
8) Each IC control one led, individual controllable;

LED Strip wiring diagram sk6812

Remark:

1) Do not use any acidic, alkaline adhesive fixing Product;
2) It is prohibited to make products with a hard object collision, friction;
3) Do not use your fingers to press LED;
4) Don’t make positive and negative reversed;
5) Don’t install when product is working;
6) Installation, repair and maintenance must be made by professional Person;
7) Before you use them make sure the power supply voltage to meet the requirements and wire connection correctly.

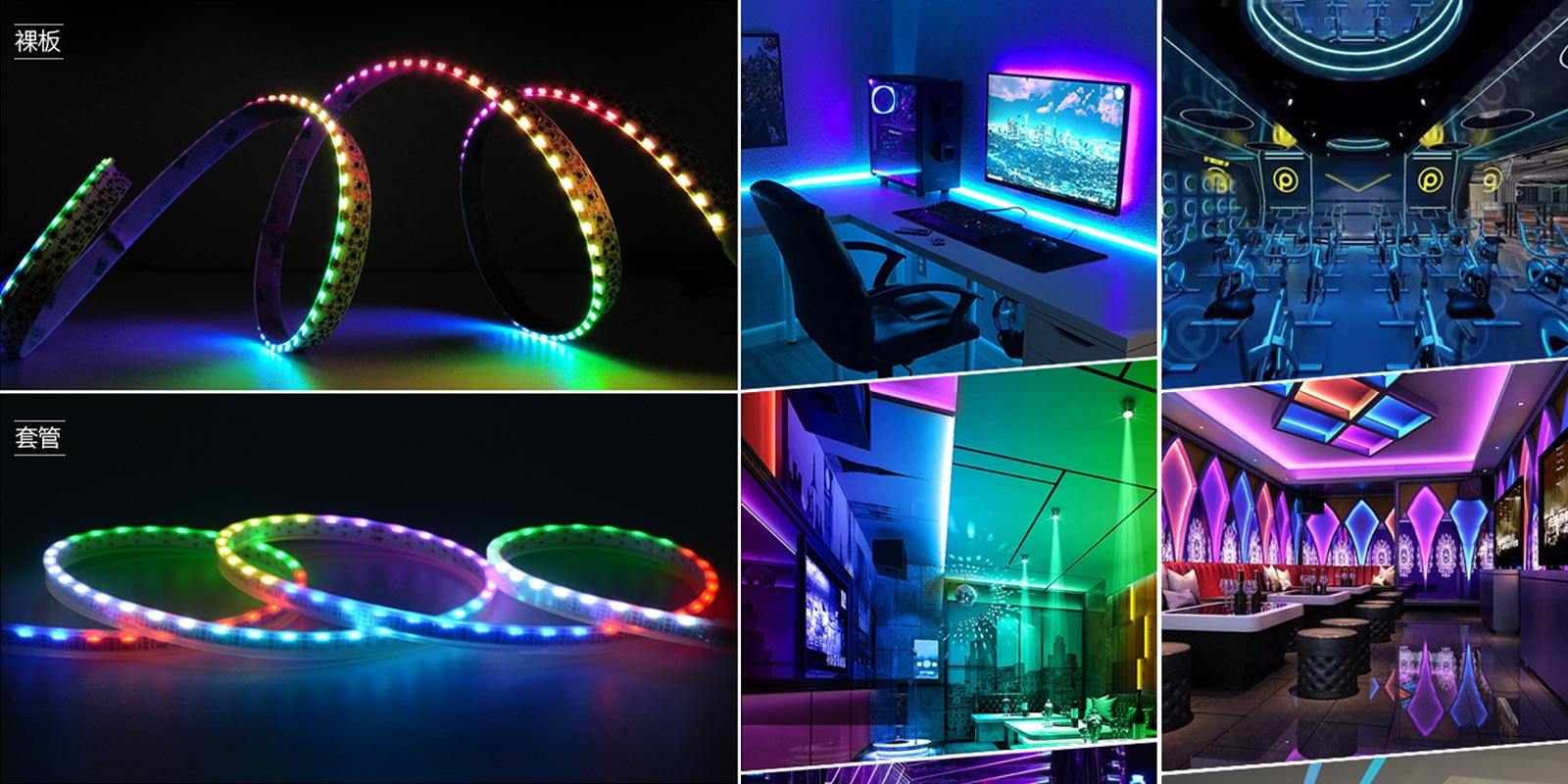

Photos and applications:

Widely used for home decoration use, hotels, clubs, shopping malls
Architectural decorative lighting, boutique atmosphere lighting
Extensively applied in background lighting, concealed lighting, channel letter lighting
Emergency & security lighting, advertisement sign lighting
Decorative lights for holiday, event, show exhibition
Applicable for automobile and bicycle decoration, border or contour lighting

Side Emitting | SK6812 4020 RGB Sideview Digital LED Strips
