12V 24V WS2811 / GS8205 / UCS1903 Digital LED Strip Series

A video of 60led/m WS2811 digital led strips, DC12V, 20pixels/meter

Overview:

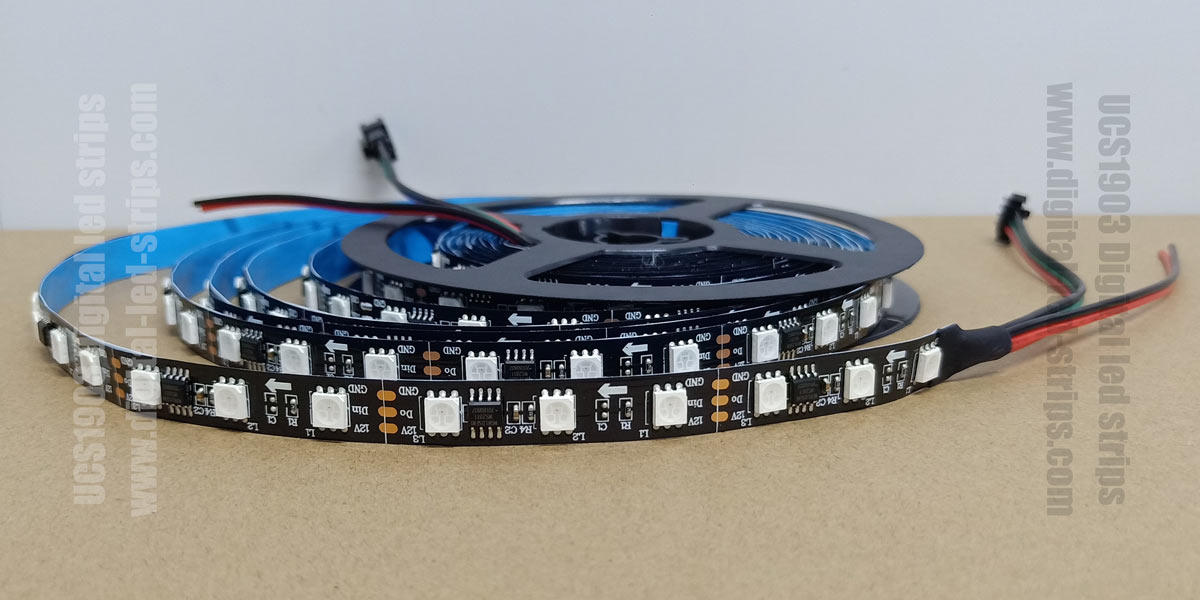

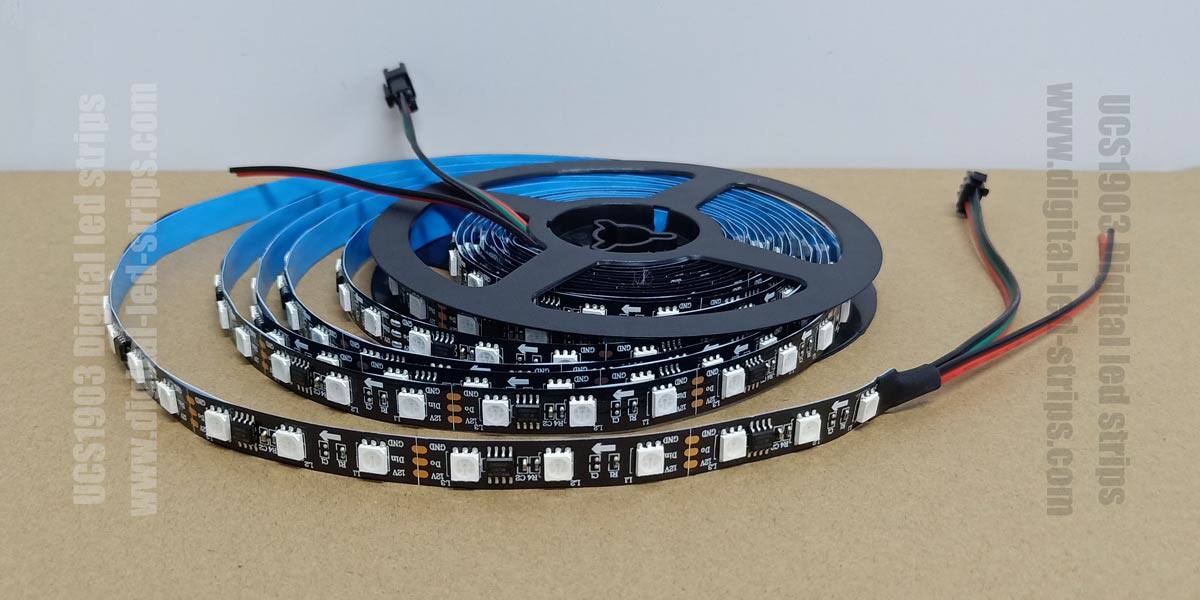

12V 24V WS2811 / GS8205 / UCS1903 Digital LED Strip Series, 60led/m, Control IC built outside, 12V/24V, 14.4w/m, 10mm white or black PCB, 15cm JST connector; ( Marks: There are 3 control IC for your choices, GS8205, WS2811 and TM1914, they have the same functions and same size, so we can use the same PCBs to make digital led strips. )

12V 24V WS2811 / GS8205 / UCS1903 Digital LED Strip Series

Technical parameter:

Product Name:	12V 24V WS2811 / GS8205 / UCS1903 Digital LED Strip Series
Product Model:	WTP-UCS1903x60-24V
PCB:	10mm, black or white PCB, better heat dissipation and longer life span
LED Type:	White or black SMD5050,
LED Quantity:	60LED/m, Each 6 LEDs separately control
Power Consumption:	DC24V, 14.4w/m,

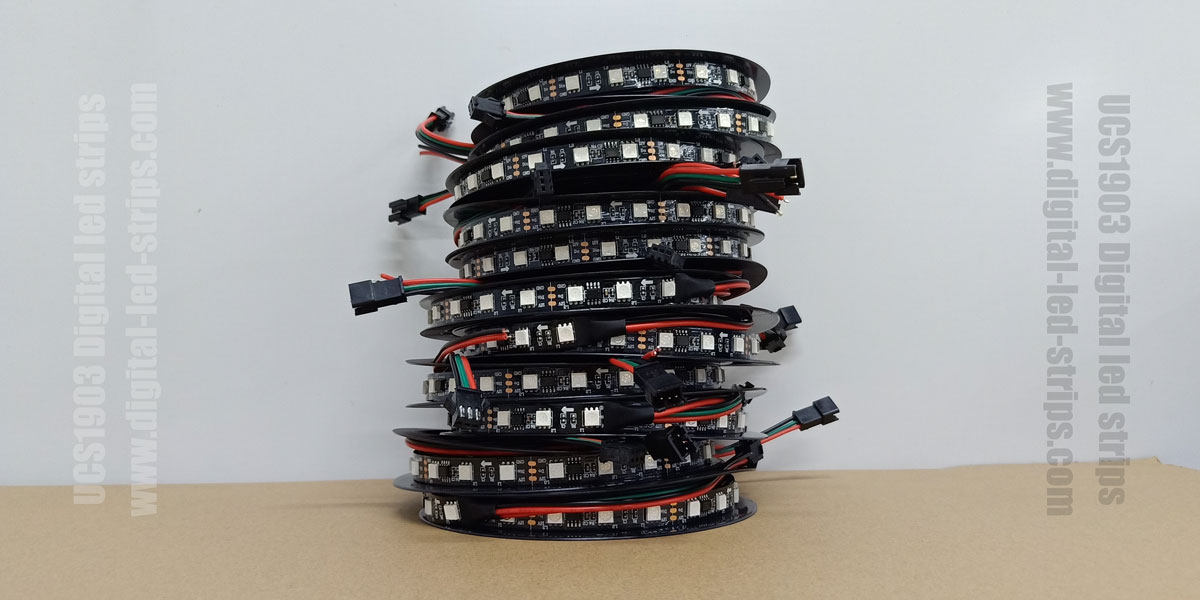

Packing & Dimension:	5000 x 10 x 2 mm / 5 meter per roll in a LED anti-static aluminum foil bag
Working Environment:	Working Temperature: -20 ℃～+45 ℃; Relative Humidity: 0 ~ 95% (no cold condensation)
Warranty:	2 Years

12V 24V WS2811 / GS8205 / UCS1903 Digital LED Strip Series

Features:

1) Addressable DC12V/24V GS8205 / TM1914 / WS2811 LED Strips; Long life span 50,000+ hours;
2) Super bright 5050 SMD top LED, high intensity and reliability;
3) Absolutely addressable, GS8205 / TM1914 / WS2811 IC built outside;
4) GS8205 / TM1914 / WS2811 has 3 Wires input and output: Data (Break point continue), GND and Power+;
6) Three or six leds one cut;
7) PWM 2KHz/m, Data transmit up to 800kbps, 256 grayscale effect;
8) Each IC control 3/6 leds;

Product Applications:

1) Light up colorful home life, DIY household lights for hallways, stairs, trails ,windows.
2) Hotels decoration use,Theaters, clubs, shopping malls, festivals and performances use.
3) Architectural decorative lighting, Archway, canopy and bridge edge lighting, Security lighting and Emergency.
4) Extensively applied in Backlighting for signage letters, concealed lighting and advertisement sign lighting.
5) Applicable for automobile & Airplane model decoration, contour lighting or border.

Order info:

SN	Model Number	LED and Pixel	PCB Width	Voltage	Power	Waterproof
1	ADY-8205-30-1012	30led/m, 10Pixels/m	10mm	12V	7.2w/m	IP20/IP65/IP67
2	ADY-8205-60-1012	60led/m, 20Pixels/m	10mm	12V	14.4w/m	IP20/IP65/IP67
3	ADY-8205-60-1024	60led/m, 10Pixels/m	10mm	24V	14.4w/m	IP20/IP65/IP67
4	ADY-2811-30-1012	30led/m, 10Pixels/m	10mm	12V	7.2w/m	IP20/IP65/IP67
5	ADY-2811-60-1012	60led/m, 20Pixels/m	10mm	12V	14.4w/m	IP20/IP65/IP67
6	ADY-2811-60-1024	60led/m, 10Pixels/m	10mm	24V	14.4w/m	IP20/IP65/IP67
7	ADY-1903-30-1012	30led/m, 10Pixels/m	10mm	12V	7.2w/m	IP20/IP65/IP67
8	ADY-1903-60-1012	60led/m, 20Pixels/m	10mm	12V	14.4w/m	IP20/IP65/IP67
9	ADY-1903-60-1024	60led/m, 10Pixels/m	10mm	24V	14.4w/m	IP20/IP65/IP67
10	ADY-1903-96-1012	96led/m, 32Pixels/m	10mm	12V	21.6w/m	IP20/IP65/IP67

Pictures:

Wiring Diagram:

Power the 24V LED strips at both ends every 10 meters

For 24VDC led strips, We suggest to power the LED strips at both ends every 10 meters.

For 12VDC led strips, We suggest to power the LED strips at both ends every 5 meters.
