You are here: Home > LED Controllers > SP108E LED Wifi Controller by Smart Phone

SP108E LED Wifi Controller by Smart Phone

Introduction:

SP108E controller realizes remote application control through WiFi, supports routing mode (AP) and LAN connection mode (STA), adjustable brightness, 180 patterns and 8 color adjustable patterns, creatively adopting images to effects The DIY arbitrary effect, DC5V~24V wide range of working voltage, to prevent reverse connection of power supply, user setting savings, suitable for clubs, bars, markets, cinemas, plazas, guest rooms, KTV, etc.
In addition: must be remembered, the SP108e LED controller don’t support DMX512 digital led strips, for this reason, in order to control DMX512 pixels, the K-1000C led controller is a good choice.
Comparatively: SP105e led controller via Bluetooth

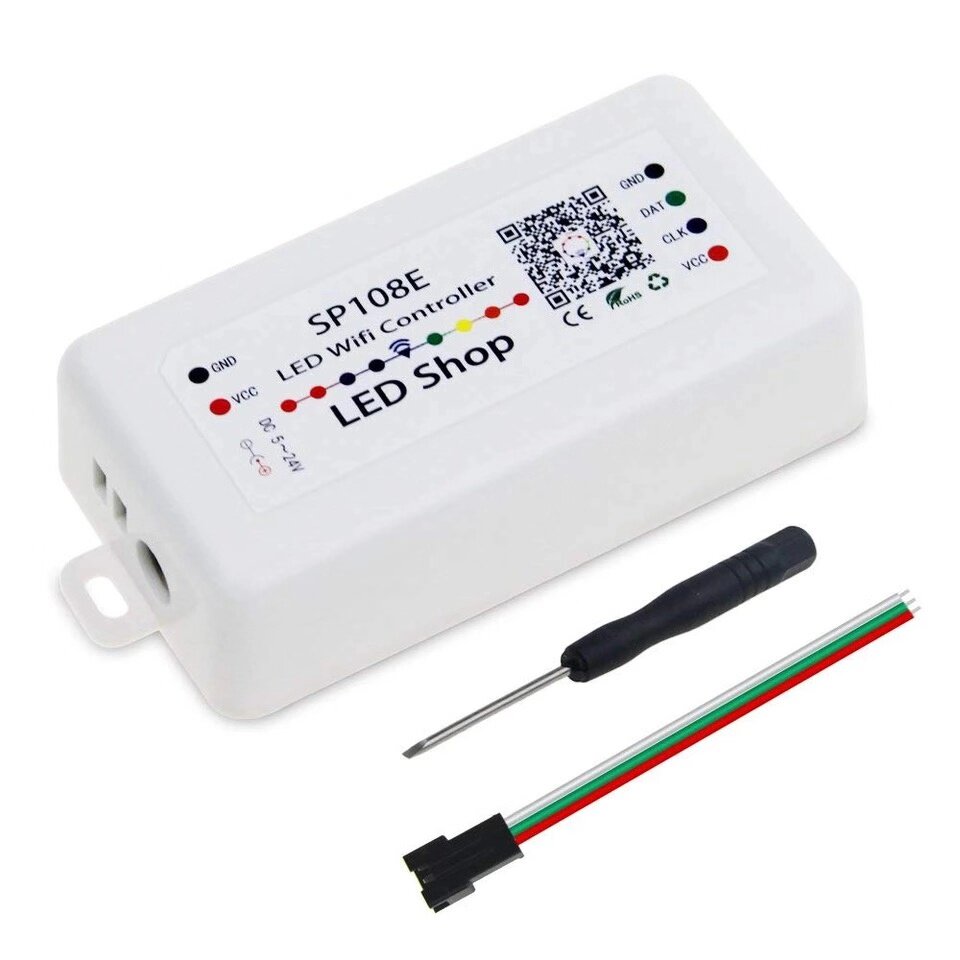

SP108E LED Controller

SP108E LED Wifi Controller by Smart Phone

Features of the SP108E led controller:
> App Control via WIFI, long Control distance, convenient to use;
> Support almost every kind of one-wire or two-wire led driver IC ;
> Brightness adjustable, With 200 kinds of patterns, which are vivid and beautiful;
> Support setting total pixel number,able tocontrol up to 2048 pixels;
> DC5V~24V wide working voltage,preventing reverse connection of power supply;
> User setting saving;

Wiring Diagram SP108E LED Controller

App for SP108e LED Controller:

> The specialized App is available on both IOS and Android OS. (hardware should support Bluetooth 4.0)
> Apple Device: iPhone4S | iPhone5/5S/5C | iPhone6S/6s Plus | iPhone6 / 6 Plus,supported IOS8.0versionor later;
> Android OS version should be Android 4.4 or later.
> Scanning the QR code below to download and install the App

Smart Phone Control via Wifi SP108E LED Wifi Controller

Specifications of the SP108E:
Working temperature : -20℃~60℃;
Voltage and current : DC5V~24V, 28mA~40mA;
Remote distance : 30 Meters;
Product size : 84mm*44mm*22.5mm;
Product weight : 40g ;
Certificates : CE, RoHS;

In general:

  Product:   SP108E LED Controller
  Control Method:    APP-2.4G WIFI
  Voltage input:    DC5V-24V /
  Support IC:   All smart IC chips
  Control pixels:   2048 pixels (1200 pixels recommended)
  Light strip effect:   188 species
  Operating temperature:   -20℃ to 60℃
  Output connector:   3pin / 4pin
  Music mode:   No;
  Group control:   One WIFI controls more controllers;
  Controllable distance:   30 meters;

    Contact Allcoola for a quick quote:
