3mm PCB 100led/m Individual Addressable APA102-2020-RGB Flex Digital LED Strips
3mm PCB 100led/m Individual Addressable APA102-2020-RGB Flex Digital LED Strips：

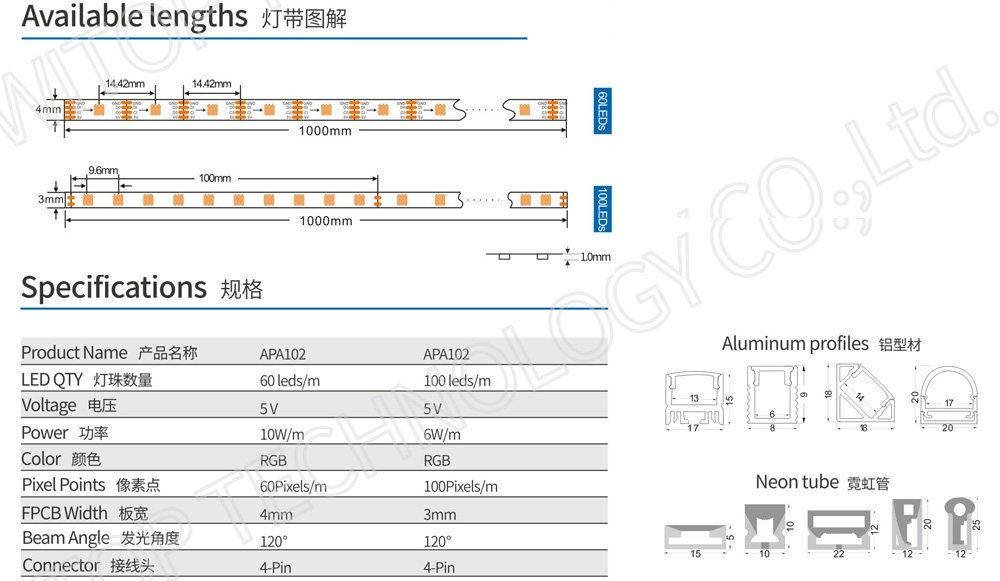

| Product Name: | 3mm PCB 100led/m Individual Addressable APA102-2020-RGB Flex Digital LED Strips |
| Item No.: | ADY-APA2020-100-0305 |
| LED Source: | APA1022-2020-RGB, 100led/m, 100pixels/m |
| PCB | 3mm black FPCB |
| IC Chip: | APA102 |
| Pins: | 4 Wires = 5V+, DATA, CLK, GND |
| View angle: | 170° |
| Voltage & Power: | DC 5V, 6w/m |
| Size: | 1000x3x1.5(mm), 1m/roll or according to your requirements |
| Controller: | SP105e, K-1000C, SD card controller, DMX controller, Ardunio and others, etc… |
About the APA102-2020-RGB LED chips:
Firstly, These incredibly small surface-mount LEDs are an easy way to add a lot of very tiny (but bright!) colorful dots to your project. They’re mini versions of our digital individual addressable strips and matrices with full chainable 2-wire control. They are just mind-bogglingly small.
Secondly, They are a mere 2mm x 2mm (way smaller than APA102-5050-RGB), which makes them pretty darn bitty, so they might be a little cumbersome to hand solder. SMT techniques with solder paste and hot air will work best here.
Thirdly, There are three LEDs inside, red, green, and blue. The RGB LEDs are controlled by a tiny chip that takes a 24-bit color level via the clock and data in and then does all the PWM control for you. So you just ‘set’ the color data once. Like DotStars (and the similar NeoPixels) you can chain them together, the output of one leading into the input of another for near-infinitely long strips.
Comes in a strip of 4000 pieces. Also available in a 1000 pack!
Lastly, Please note this LED is a surface-mount part! It is possible to solder thin wires to the pads, but it’s designed for use on an SMD PCB.
VS: 4mm PCB 60led/m Individual Addressable APA102-2020-RGB Flex Digital LED Strips
Tags: Addressable LED Strip,APA102,APA102 2020 RGB,APA102-2020,Supper Narrow PCB
