0612 | 0816 Economics Single Color Silicone Neon LED Lights
Features: 0612 | 0816 Economics Single Color Silicone Neon LED Lights – no smell, smooth light, soft rubber
With SMD2835 Flex LED strips inside, 12 colors for optional
Basic Parameters:
| Product: | DC12V 0612 LED NEON Light | DC12V 0816 LED NEON Light |
| SPN: | ADY-N0612-XX-12 | ADY-N0816-XX-12 |
| Size: | About 12x6mm | About 16x8mm |
| Voltage & Power: | DC12V, 6-12w/m | DC12V, 6-12w/m |
| Beam angle: | 180 degrees | 180 degrees |
| Cut length: | 3led/segment, 25mm/cut | 1led/segment, 10mm/cut | 3led/segment, 25mm/cut | 1led/segment, 10mm/cut |
| Waterproof: | IP67 | IP67 |
| Life span: | >50000 hours | >50000 hours |
| Packing length: | 5m or 50m | 5m or 50m |
Material: Silicone resin.
Standard Length: 5m/roll or 50m/roll
Accessories: silicone resin end cap, Metal mounting clip.
PCB Width : 5-6mm

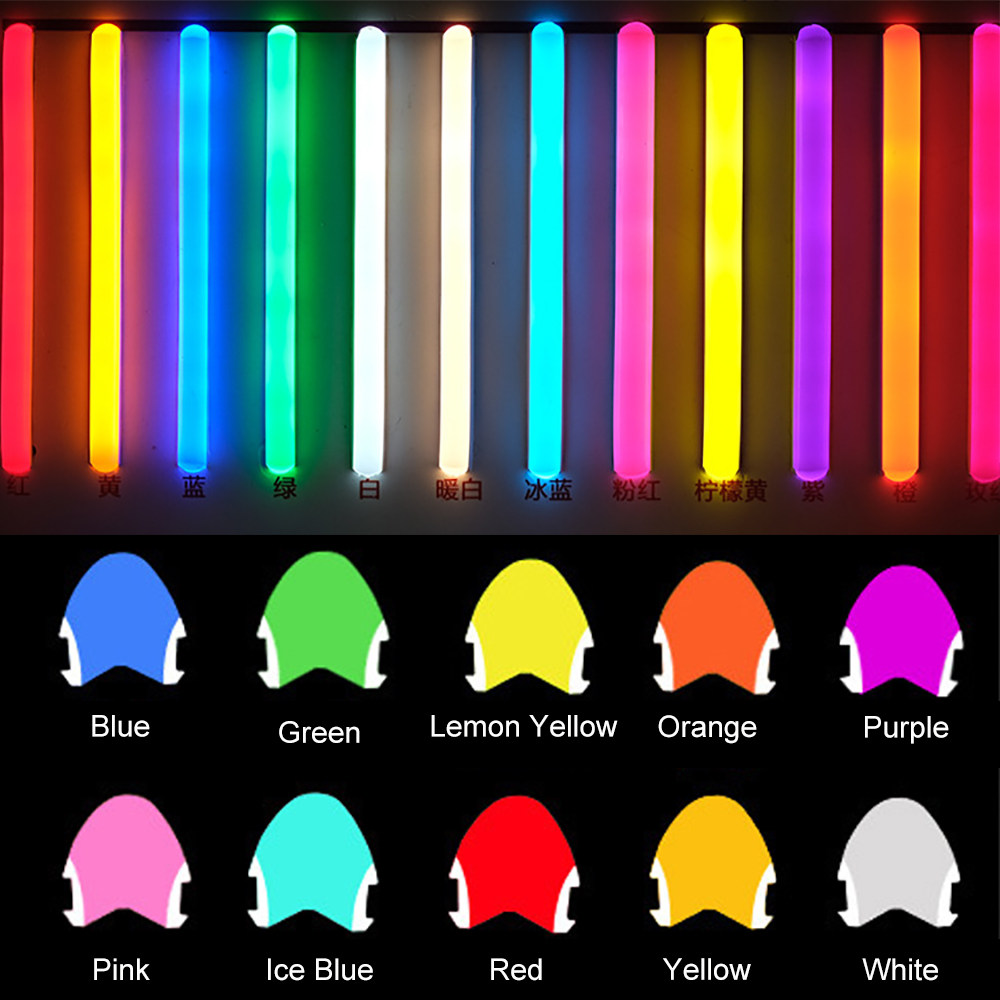

Color: Warm white, Natual white, Cold white, Red, Green, Blue, Yellow, Pink, Ice blue, Violet, Orange, Lemon Yellow
Bean Angle: 180°
IP rating : IP67.
Keywords: 0612, 0816, Silicone tube, LED Neon Flex, LED Neon Flexible Strip, LED Neon Light, LED Neon Strip, Mini LED Neon Flex

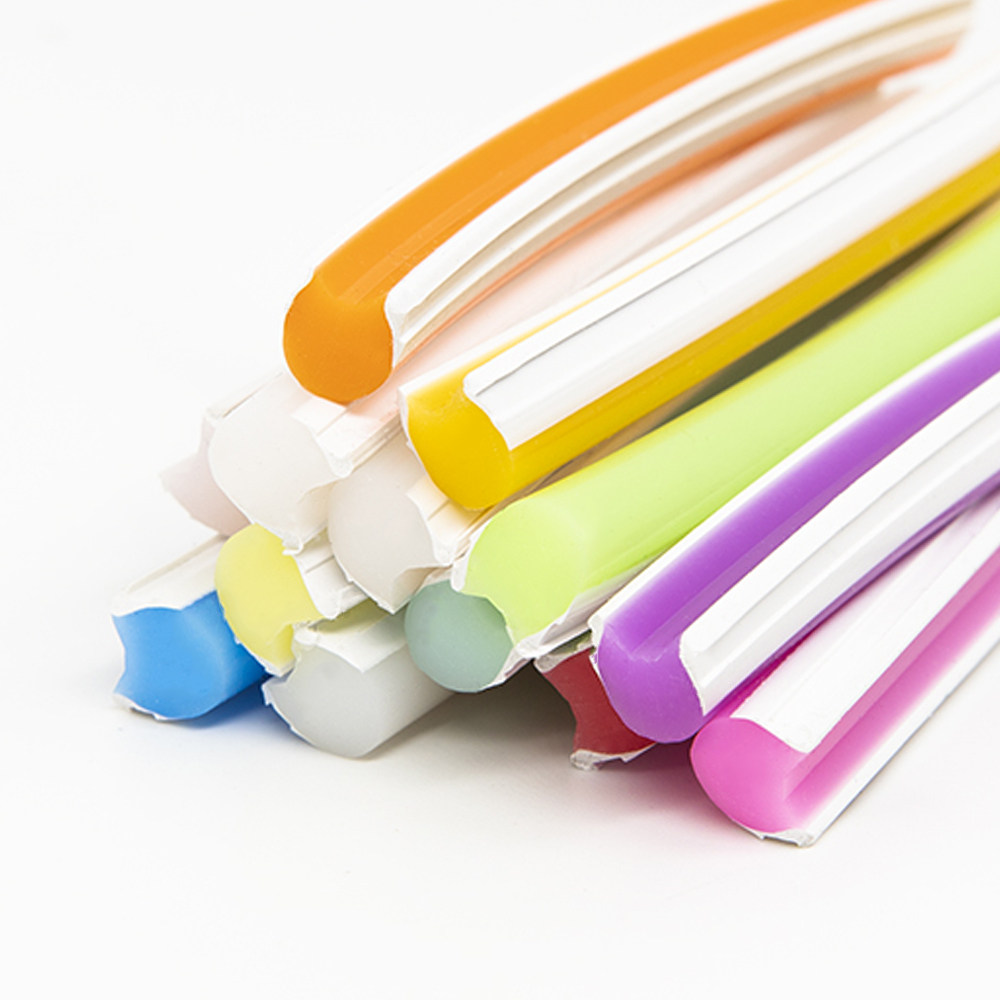

Photos show:
Wiring Diagram:
6mm and 8mm Seperate NEON Tubes:
