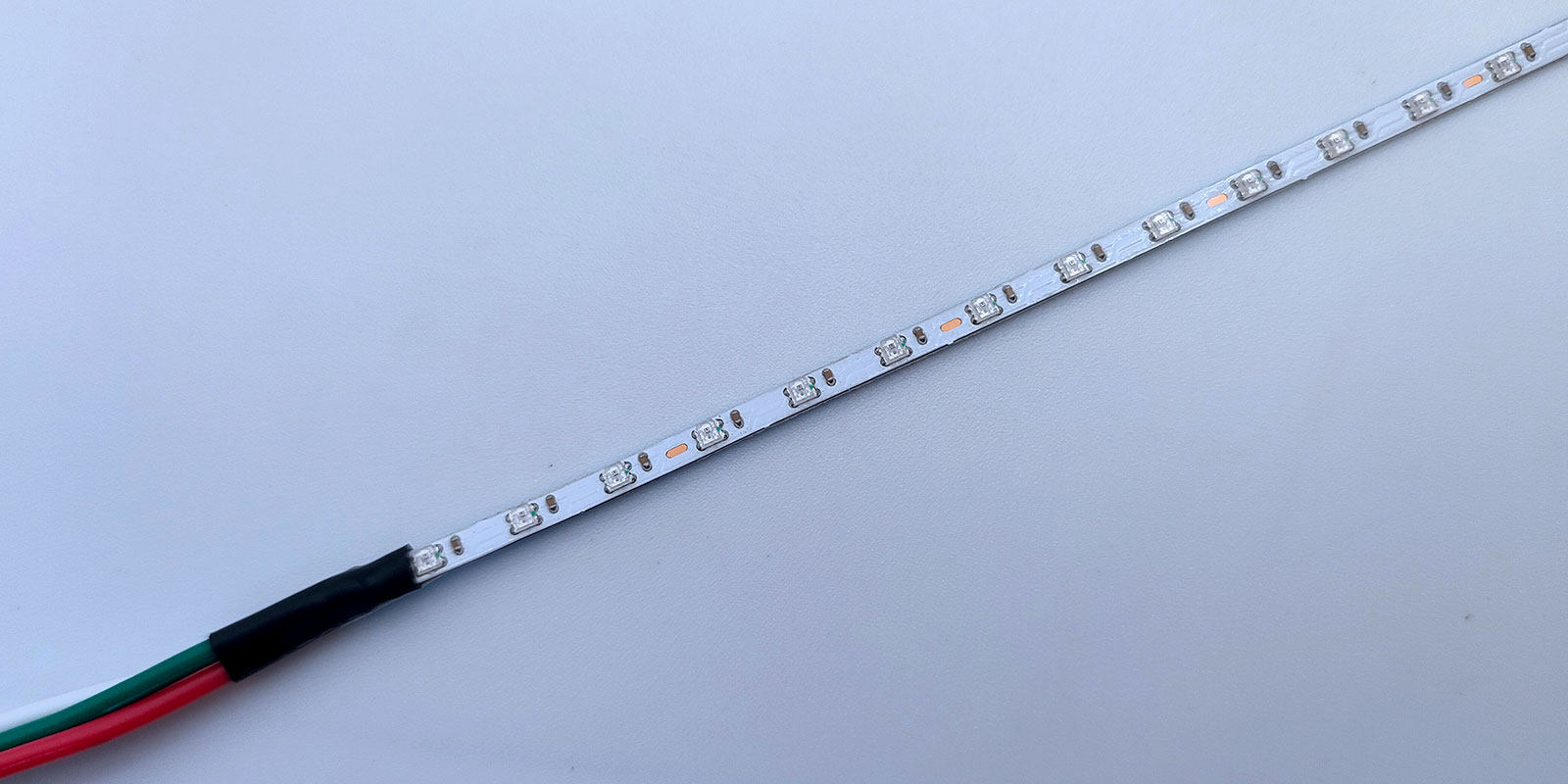

2.6mm Width 7.5mm Pitch 133Pixels/m Individual Addressable WS2812 0809 Digital LED Strips

WS2812 0809 RGB LED is a small size digital full-color built-in IC SMD, which has one SPI data and can be controlled by most SPI LED Controllers. 133LED/m, 133Pixels/m, DC5V, 10w/m, 2.6mm width FPCB, IP20, 1.1m/pcs or according to the contract.

> 2.6mm width Super Flexible tiny PCB
> High density, 133led/m, 133pixels/m, individual addressable
> 3LED per segment, Each segment is cuttable

3LED per segment, Each segment is cuttable

Specification:

  Product Name:    WS2812 0809 Digital LED Strips
  Item No.:   ADY-2812-0809-133-0205
  LED Source:    WS2812-0809-RGB, 133led/m, 133pixels/m
  PCB   2.6mm white FPCB
  IC Chip:   WS2812
  Pins:   3 Wires = 5V+, DATA, GND
  View angle:   170°
  Voltage & Power:   DC 5V, 10w/m
  Size:   1100×2.6×1.8(mm), 1.1m/roll or according to your requirements
  Controller:     SP105e, K-1000C, SD card controller, DMX controller, Ardunio and others, etc…

> Firstly: Individual controlable / addressable / programmble
> Secondly: High density, 133 pixels per meter
> Thirdly: Mini Size, 2.6 mm white FPCB

Wiring Diagram:

Refer to: APA102 2020 Customized High Density Programmable Dream Color 125led Rigid LED Strip

Features and Benefits of the WS2812-0809-RGB chips:

1) The control circuit and the LED share the only power source.
2) The control circuit and RGB chip are integrated into a package of 5050 components, to form a complete addressable pixel.
3) Built-in signal reshaping circuit, after wave reshaping to the next driver, ensure wave-form distortion does not accumulate.
4) Built-in electric reset circuit and power lost reset circuit.
5) Each pixel of the three primary colors can achieve a 256-brightness display, a completed 16777216 color full-color display, and a scan frequency of 2KHz.
6) Cascading port transmission signal by a single line.
7) Any two-point distance not more than 5m transmission signal without any increase circuit.
8) When the refresh rate is 30fps, the cascade number is not less than 1024 pixels.
9) Send data at speeds of 800Kbps.
10) The color of the light is highly consistent and cost-effective.

We have another two versions of the WS2812C 200pixels LED strips, one is 3mm FPCB, and the other one is with 4mm PCB
