Video | DC24V 5in1 RGBWW+W 84leds low power consumption led strip light | Allcoola Digital LED Strips

Video | DC24V 5in1 RGBWW+W 84leds low power consumption led strip light

1) Copper base and gold wire LED which provide good heat dispersion, long life span and low Luminous Decay.
2) All high quality double layers PCB, at least 2 ounces, or 4 oz in 5in1 RGBWW led strip models.
3) Same bin number SMD LEDs for different production batches for the same customer.
4) Everfine integrating sphere to test the led strips. Normally 5 MacAdam LED is +/-100k
5) 3 MacAdam LED Strip/tape as customer request.

Video | DC24V 5in1 RGB+CCT 84leds led strip

Specification

Item Type	SMD5050-RGBWW 5 colors in 1 Flex LED Strip
Led Model	WTP-RGBWW-84
LED Qty	84Leds/M
Cutting Size	120mm
Ra	80
CCT(K)	RGB+2700K/3000K/4000K/6000K
Dimmensions(mm)	5000 * 12 * 2 (L * W * H)
IP Rating	IP20/IP65/IP67/IP68
Bean Angel	120º
Certification	CE/RHOS
Warranty	2 Years

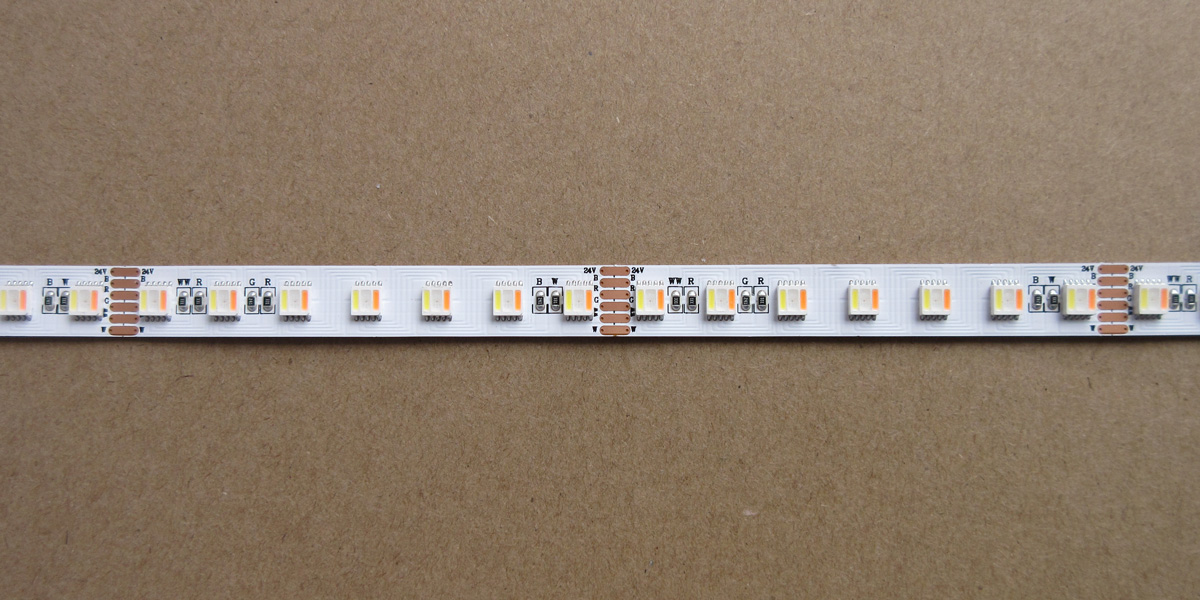

Video | DC24V 5in1 RGB+CCT 84leds led tape

Colorful series

Implementation of 7 colour change at the same time can have a pure white light. Single point of single control, high gray level, and can achieve a variety of beautiful effect. Achieve pure white while changing different colors. For magic LED strips, Each IC controls each LED, high gray level realize various lighting effects.

DC24V 5in1 RGB+CCT 84leds led strip

About the SMD5050 5 IN 1 LED Chips

DC24V 5in1 RGB+CCT 84leds led tape

Waterproof Grade

Video | DC24V 5in1 RGB+CTA 84leds led strip

IP20: Non-waterproof, available indoor.
Ip65: silicone glue or epoxy resin, can prevent the splashing water invade, available indoor.
IP67: Silicone tube, hollow, can prevent the big wave water invade; available indoor and outdoor.
IP68: Silicone tube +silicone gel or silicone extrusion molding, completely prevent dust and water invade; available indoor,outdoor and water.

Accessories

RGB WW CW CTA CCT led strip

Order info: (Color: RGB+3000K+6000K)
SN	Model Number	LED	PCB Width	Voltage	Power	Waterproof
1	WTP-5050RGBWW-30	30led/m	12mm	12V	8.4w/m	IP20/IP65/IP67
2	WTP-5050RGBWW-60	60led/m	12mm	12V/24V	16.8w/m	IP20/IP65/IP67
3	WTP-5050RGBWW-84	84led/m	12mm	24V	20.2w/m	IP20/IP65/IP67
