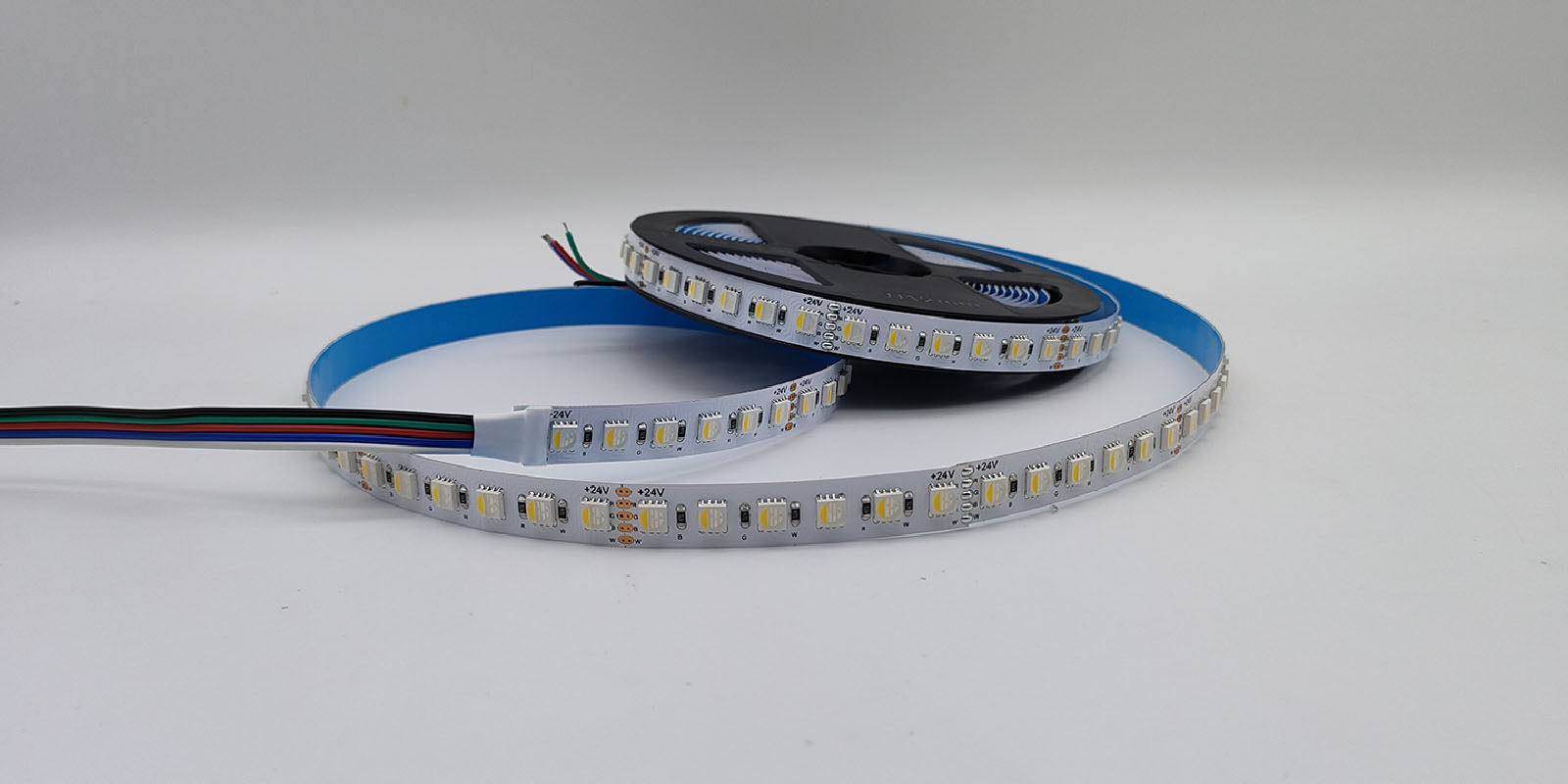

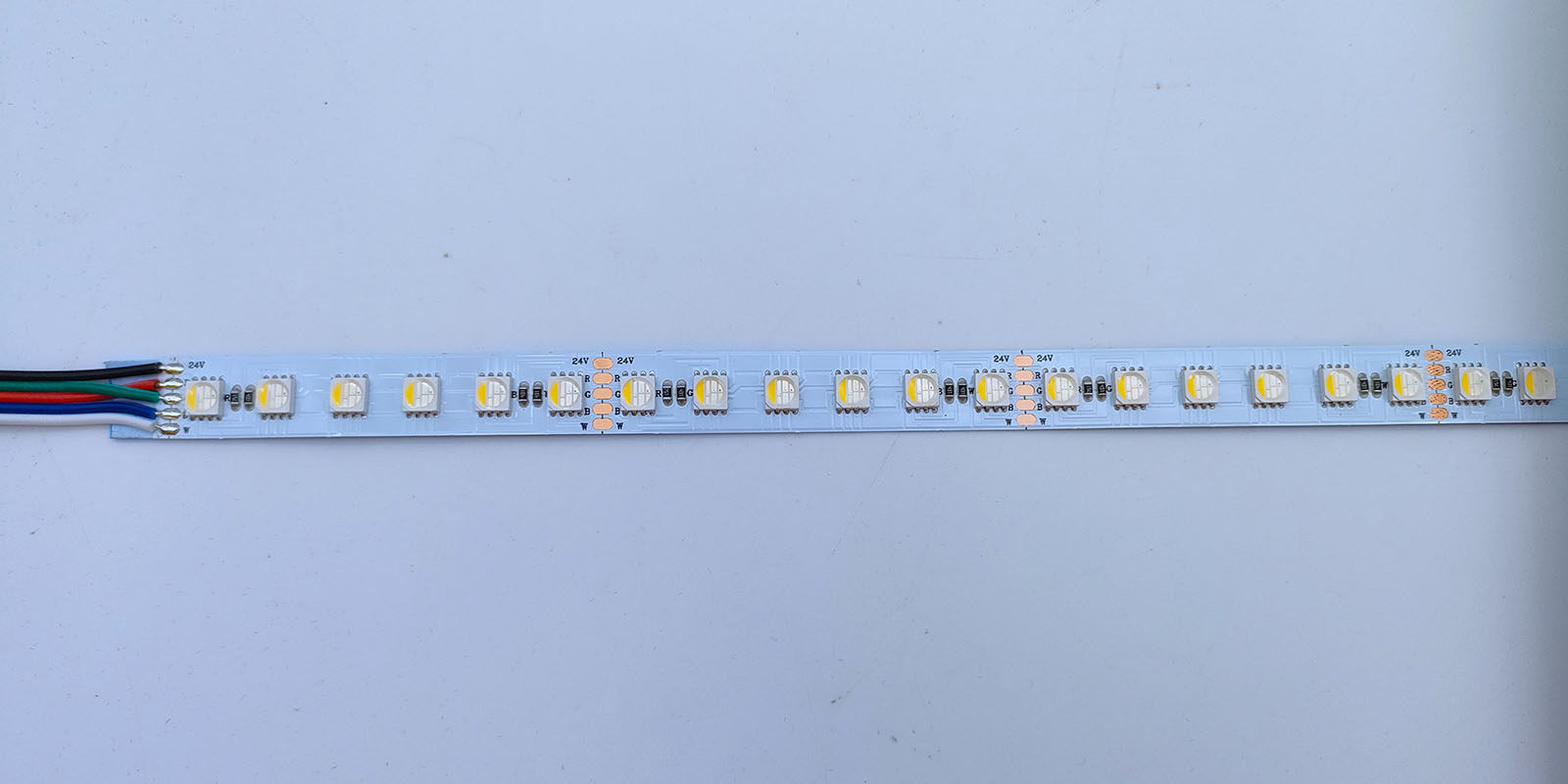

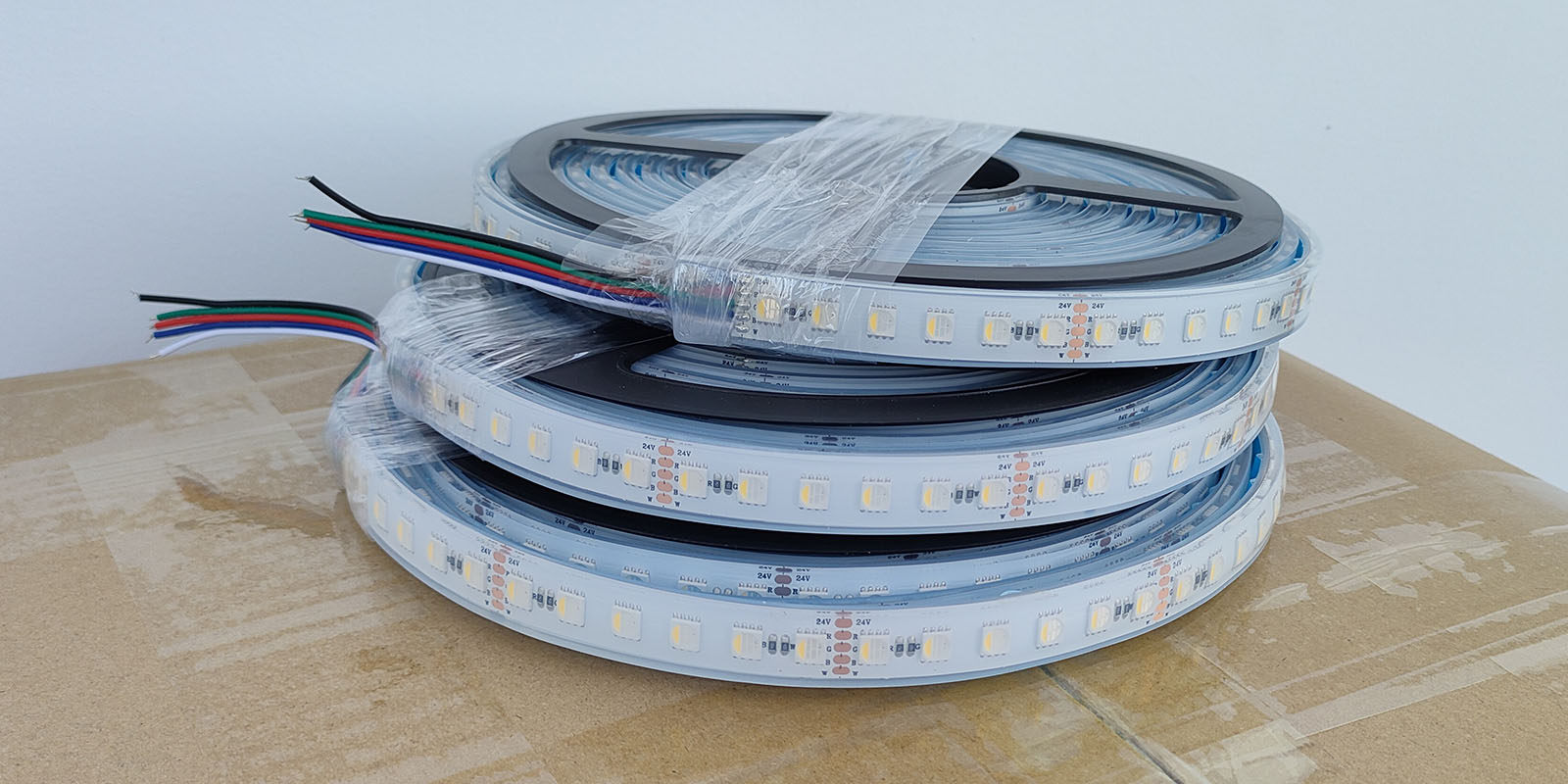

96led/m High Density SMD5050 RGBW 4In1 Flex LED Strips

Video | 96led/m High Density SMD5050 RGBW 4In1 Flex LED Strips

96led/m High Density SMD5050 RGBW 4In1 Flex LED Strips, it can realize the sequential change and flicker effect of the four colors of red, green, blue and white. Important to realize, because the 5050 RGBW can be controlled by led controllers, when we press mode selection, not only color selection, brightness adjustment, speed adjustment, but also other functions; Given that, various dynamic lighting effects such as jump, gradual change, stroboscopic, etc. can be realized according to the actual needs of customers.

12V/24V 30/60/72/84/96/120 SMD 5050 RGBW 4In1 Flex LED Tape

What’s the difference between RGB and RGBW LED strip?

Standard RGB LED strip uses a 3-in-1 LED chip made up of red, green and blue chips. It can produce a wide range of colours by mixing the three and looks almost white with all three at full brightness.
RGB+W LED strip uses either a 4-in-1 LED chip that has a white chip as well as red, green and blue.

Which is better?

RGB+W is undoubtedly a much more capable product that standard RGB LED strip. However, it is of course a bit more expensive.

Datasheet:

Product:	96led/m High Density SMD5050 RGBW 4In1 Flex LED Strips
Item No.:	ADY-RGBW-96-1224
LED:	96x SMD5050-RGBW, RA80/RA90, 3000K, 4000K, 6000K,
View angle:	120°
Description:	24V 96led/m RGBW flex LED strip, RGB+6000K, 31w/m, 12mm white PCB, IP20, 5m/roll
Input voltage:	24V
Power:	31w/m
Size:	5000x12x2.2(mm), 5m/roll

Features

> 100% Brand New. RGBW 4 colors in 1 LED, RGB+3000K, RGB+4000K, RGB+6000K for optional.
> Super bright 5050SMD top LED, high intensity and reliability.
> Continuous length, packed with 5 meter.
> Cuttable every marked along the cutting marks, according to practical requirement.
> Long life span 50,000+ hours
> Flexible ribbon for curving around bends
> Low power consumption
> Completely smooth and even light spread, solving the uneven luminous problem
> Ultra-bright but running at low temperature
> High brightness, low power, long life, easy installation, the production of highly customizable,
> Easy for transporting, decorative effect is brilliant, energy saving, environmental protection.

Order info: (Color: RGB+3000K, RGB+4000K, RGB+6000K for optional)

SN	Model Number	LED	PCB Width	Voltage	Power	Waterproof
1	ADY-5050-30F4-12XX	30led/m	12mm	12V/24V	9.6w/m	IP20/IP65/IP67
2	ADY-5050-60F4-12XX	60led/m	12mm	12V/24V	19.2w/m	IP20/IP65/IP67
3	ADY-5050-72F4-12XX	72led/m	12mm	12V	23.0w/m	IP20/IP65/IP67
4	ADY-5050-84F4-1224	84led/m	12mm	24V	26.8w/m	IP20/IP65/IP67
5	ADY-5050-96F4-1224	96led/m	12mm	24V	31.0w/m	IP20/IP65/IP67
6	ADY-5050-120F4-2024	120led/m	20mm	24V	38.4w/m	IP20/IP65/IP67
