Allcoola Digital LED Strips
|
APA102 2020 Flex Digital 4mm LED Strips | Video
Overview:
APA102 2020 RGB Flex Digital LED Strips, 60led/m, 60pixel/m, Individual Addressable, 5V, 6w/m, 4mm Mini black Flexible PCB, 4-pin JST connection, Date Pin and Clock Pin for signal transfer, IP20 no waterproof, 2m/roll
Datasheet:
| Product: | New 4mm FPCB SMD 2020 RGB Magic Dream Color APA102 APA102c Flexible Pixel LED Strips |
| Item No.: | WTP-APA102-2020-60-0405 |
| LED: | APA102-SMD2020-RGB, 60led/m / |
| View angle: | 170° |
| IC Chip: | APA102 |
| Input voltage: | 5V, 6w/m |
| Connection: | 4 Wires = 5V+, CLK, DATA, GND |
| Size: | 2000x4x1.5(mm), 2m/roll |
| Controller: | SP105e, K-1000C, SD card controller, DMX controller, Ardunio and others, etc… |
Applications:
APA102 2020 RGB Flex Digital LED Strips, with excellent light and user-friendly designs, make it perfect for numerous applications.
> Cove lights, backlights, cabinet lights, edge light,
> Architectural lights for the corridor, canopy, archway,
> Lights for path and contour marking, etc.
> Hotels, restaurants, night clubs, coffee/ wine bars,
> Shopping malls, various shops, cinemas, beauty centers,
> Office fronts,
> Even lights for household kitchens or living rooms, etc.
Features:
> Control IC APA102C inserted in 2020 RGB diode, individually addressable control, supporting numerous color-change effects.
> It comes in 2 meters per reel with a 4pin JST SM connector on both end and separated power & Ground Wires. The customized length is available.
> Flexible PCB material. Each LED /Pixel can be cut, there is cut lines every 16.6mm.
> 60leds/m, 5V low voltage inputted, don’t over 5.5V, otherwise, you will destroy the entire strip.
> 4mm width PCB, 0.15mm thickness with 3M tape backside for non-waterproof version.
> Date Pin and Clock Pin for signal transfer.
Advantages:
1) With an FPCB, can be free to bend the shape, which fixed in the uneven surface, easy to install using the 3M self-adhesive
2) Working stable, in case of high temperature and a low temperature does not change color, low voltage long life;
3) 1 led one cut
4) Easy to install (using the 3M self-adhesive)

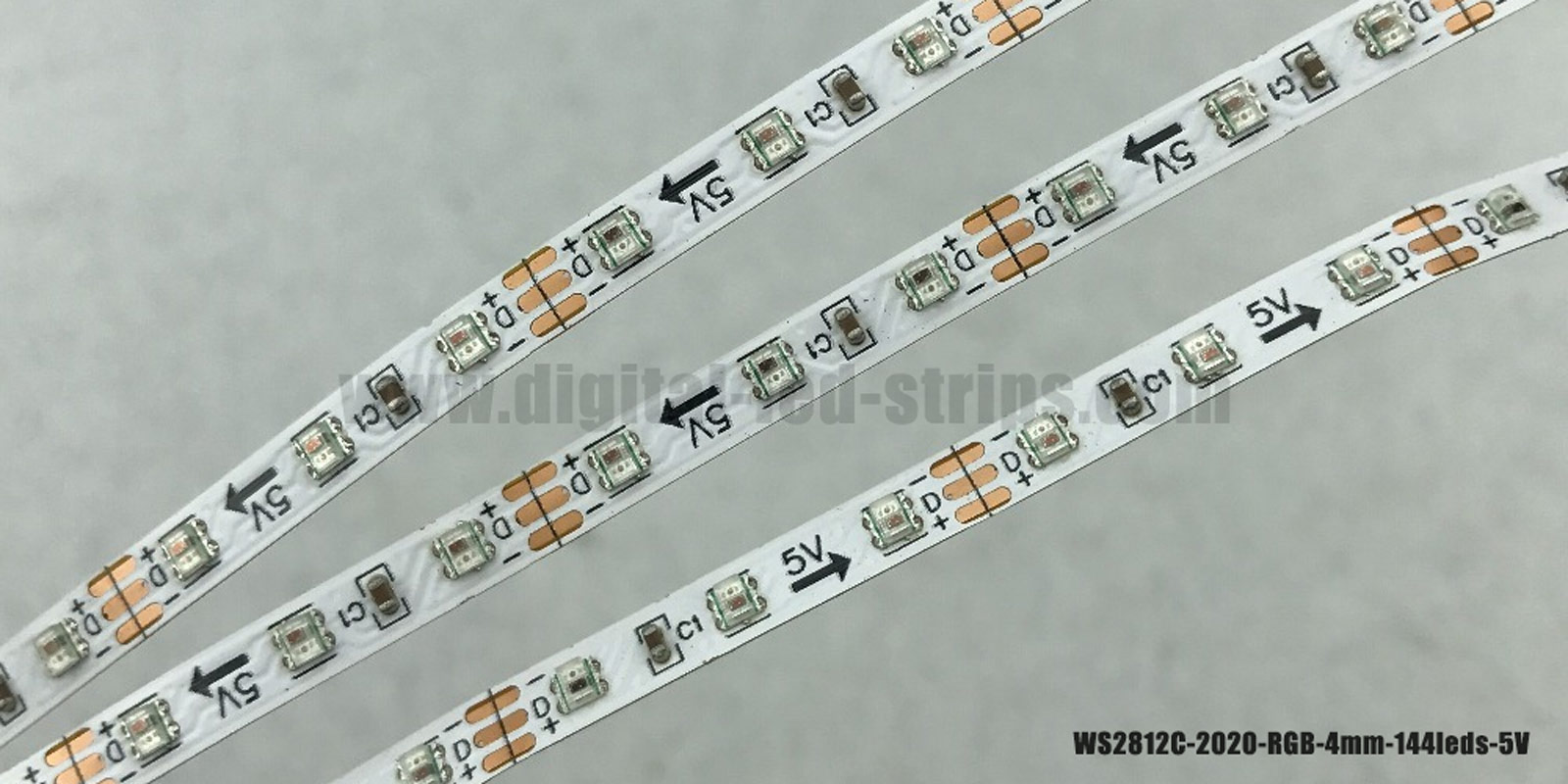

VS: 144leds WS2812C 2020 RGB Digital led strips
Tags: 2020,Addressable LED Strip,APA102,APA102 2020 RGB,Supper Narrow PCB,WS2812C 2020 RGB
