New | WS2813B RGBW Digital LED Strips

New | WS2813B RGBW Digital LED Strips

New | WS2813B RGBW Digital LED Strips

Overview:

New | WS2813B RGBW Digital LED Strips, Breakpoint Continue, Individual Addressable, 60led/m, Control IC built inside the LED, 60pixel/m, 5V, 24w/m, 10mm white or black PCB, 15cm JST connector;

Data sheet:

  Product:   New | WS2813B RGBW Digital LED Strips
  Item No.:   WTP-2813-RGBW-60-1005
  LED:   WS2813-SMD5050-RGBW, 60led/m
  View angle:  120°
  IC Chip:  WS2813B
  Input voltage:  5V
  Power:  24.0w/m
  Size:  5000x10x2.0(mm), 5m/roll

Features

1) Addressable DC5V WS2813B LED Strips; Long life span 50,000+ hours;
2) Super bright 5050 SMD top LED, high intensity and reliability;
3) Absolutely addressable, each IC built inside a SMD5050-RGBW LED;
4) WS2813 has 4 Wires input and output: Datax2, GND and Power+; one LED died, the rest LEDs can keep working;
6) One led one cut;
7) PWM 2KHz/m, Data transmit up to 800kbps, 256 grayscale effect;
8) Each IC control one led, individual controllable;

LED Strip wiring diagram WS2813


Application:

> Widely used for home decoration use, hotels, clubs, shopping malls
> Architectural decorative lighting, boutique atmosphere lighting
> Extensively applied in background lighting, concealed lighting, channel letter lighting
> Emergency & security lighting, advertisement sign lighting
> Decorative lights for holiday, event, show exhibition
> Applicable for automobile and bicycle decoration, border or contour lighting

Remark:

1) Do not use any acidic, alkaline adhesive fixing Product;
2) It is prohibited to make products with a hard object collision, friction;
3) Do not use your fingers to press LED;
4) Don’t make positive and negative reversed;
5) Don’t install when product is working;
6) Installation, repair and maintenance must be made by professional Person;
7) Before you use them make sure the power supply voltage to meet the requirements and wire connection correctly.

Photos

WS2813B VS WS2812B

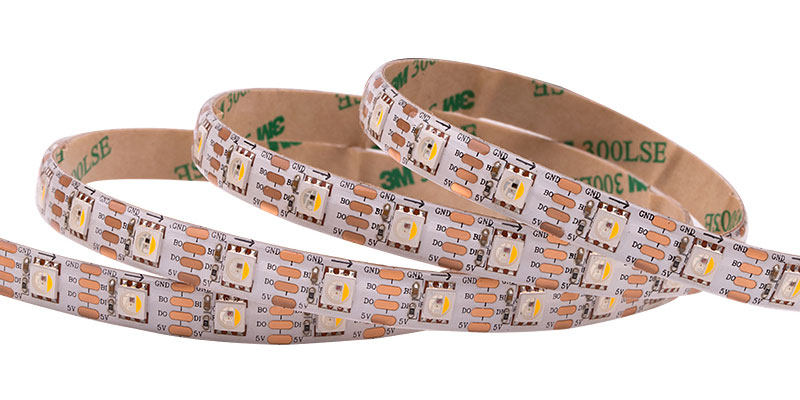

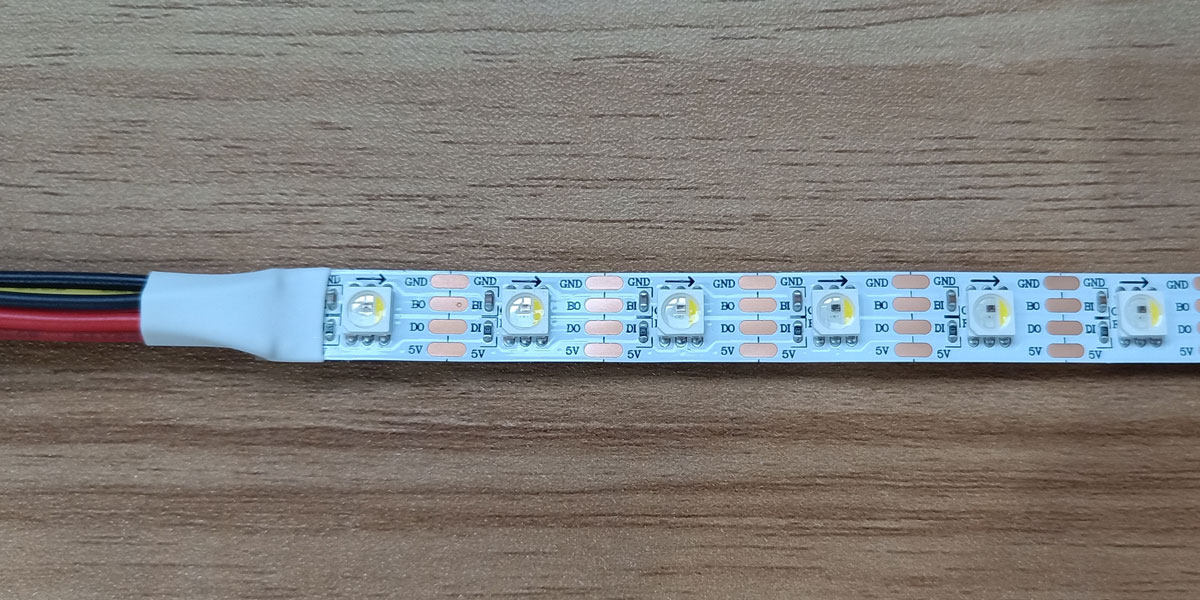

SMD 5050 RGBW LEDs with WS2813 IC embed inside

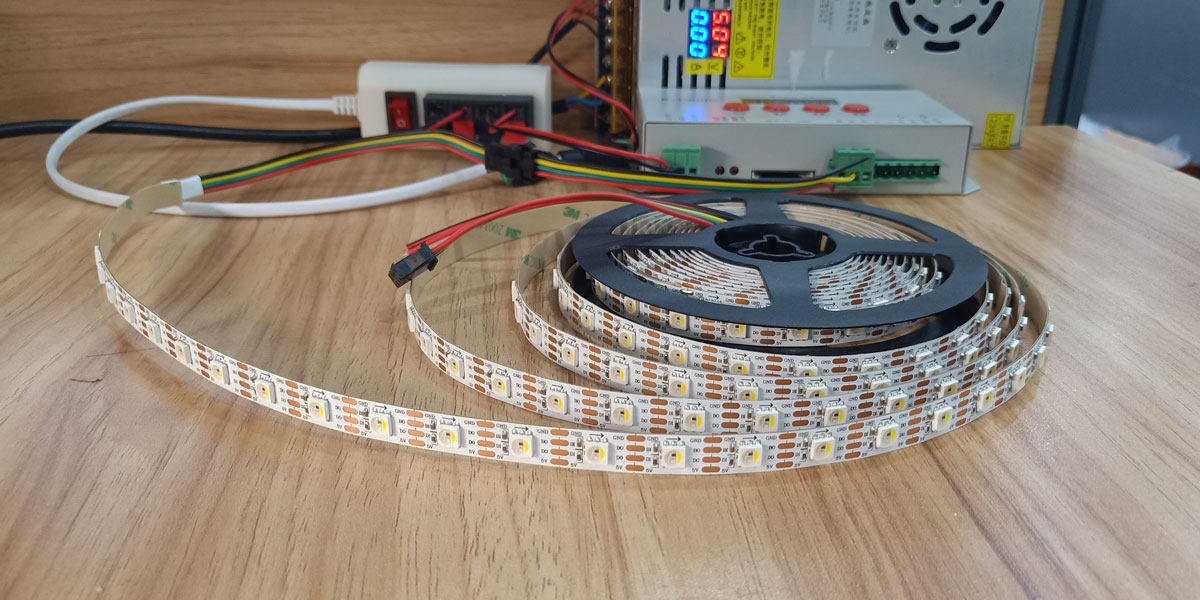

5 meters per roll standard packing

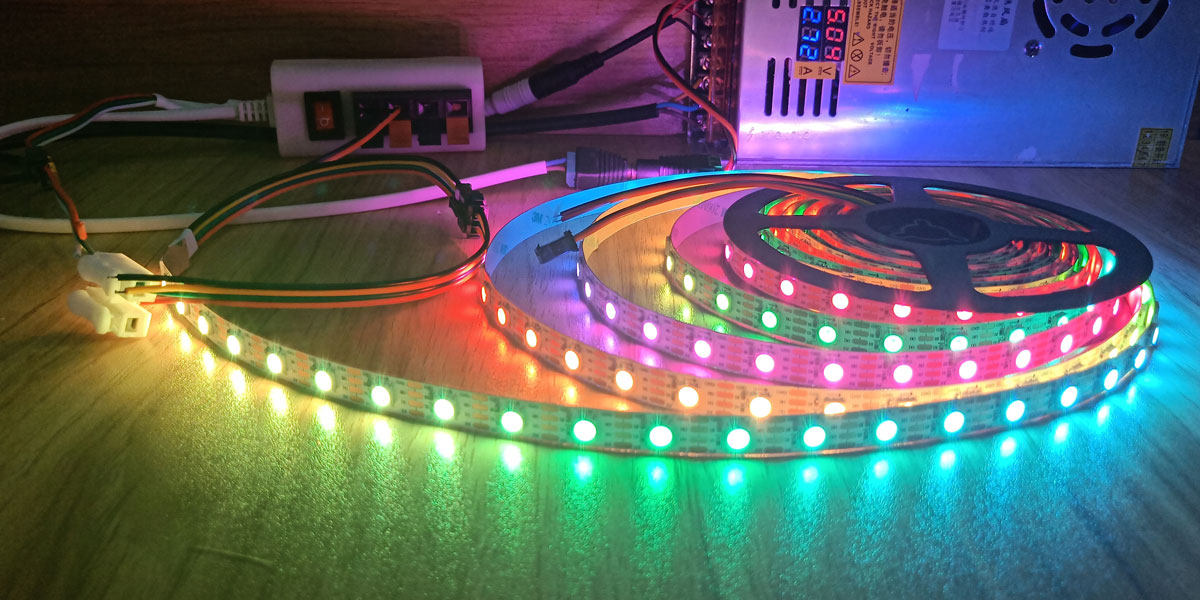

Turn on the led strips
