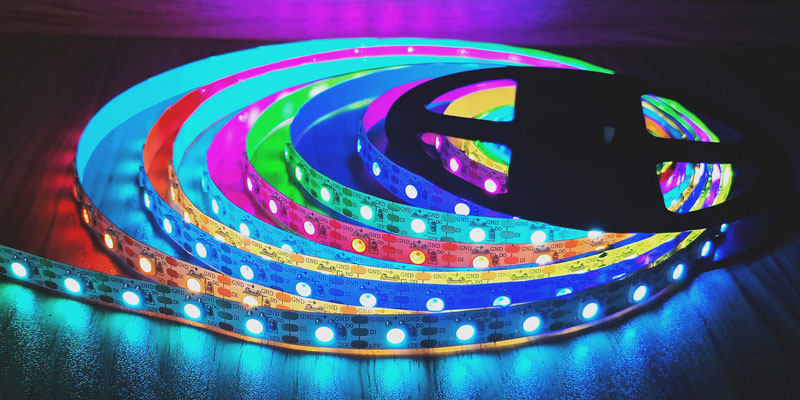

New 12V Individual Addressable CS8812F Digital led strips

DC12V digital led strips
CS8812F Digital led strips | DC12V digital led strips

Overview:

New DC12V digital led strips, 60Pixels per meter, Individual Addressable, CS8812F LEDs With IC buit inside, 60led/m, Control IC built inside the LED, 60pixel/m, 12V, 13.2w/m, 10mm white or black PCB, 15cm JST connector; higher drive voltage, lower vlotage dropping.

Recommend led controllers: K-1000C, K-8000C, T-500K, H802RA Madrix version (Art net),

Data sheet:

  Product:   12V 60Pixels/m Individual Addressable CS8812F Digital led strips
  Item No.:   WTP-8812F-60-1012
  LED:   CS8812F-SMD5050-RGB, 60Piexls/m
  View angle:  120°
  IC Chip:  CS8812F
  Input voltage:  12V
  Power:  13.2w/m
  Size:  5000x10x2(mm)

Features

1) Addressable DC12V CS8812F LED Strips; Long life span 50,000+ hours;
2) Super bright 5050 SMD top LED, high intensity and reliability;
3) Absolutely addressable, each IC built inside a SMD5050-RGB LED;
4) CS8812F has 3 Wires input and output: Data, GND and Power+;
5) One led one cut;
6) PWM 2KHz/m, Data transmit up to 800kbps, 256 grayscale effect;
7) Each IC control one led, individual controllable;

Wiring Diagram & Size:

Size
Size | 5000mm x 10mm x 2.0mm

Application:

> Widely used for home decoration use, hotels, clubs, shopping malls
> Architectural decorative lighting, boutique atmosphere lighting
> Extensively applied in background lighting, concealed lighting, channel letter lighting
> Emergency & security lighting, advertisement sign lighting
> Decorative lights for holiday, event, show exhibition
> Applicable for automobile and bicycle decoration, border or contour lighting

Photos

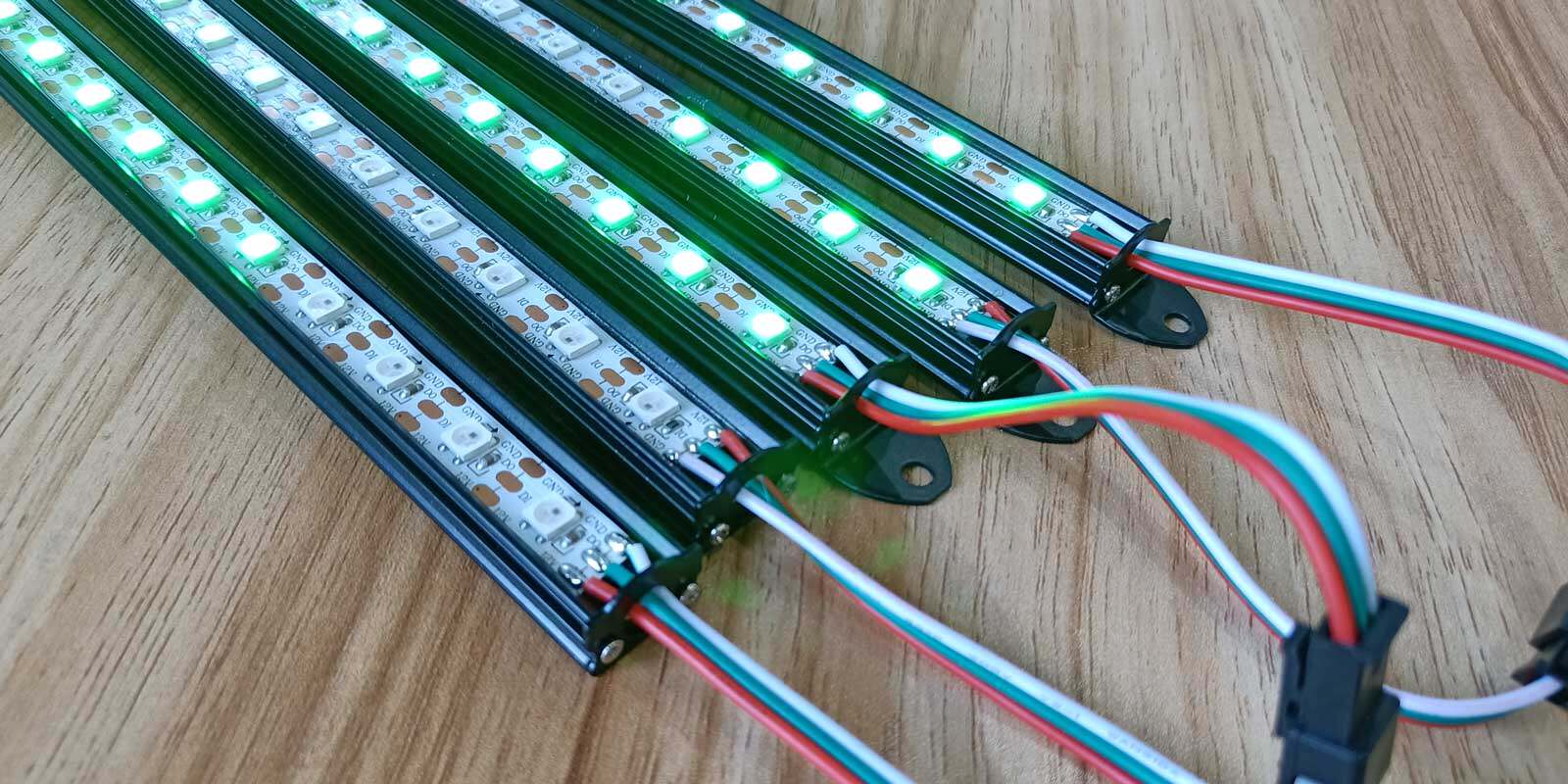

CS8812F 12V 60Pixels Linear led lights | 021C black Aluminium profile
CS8812F DC 12V One LED one Pixel Linear led lights

CS8812 VS CS8812F:

CS8812 VS CS8812F | break

    Contact Allcoola for a quick quote:
