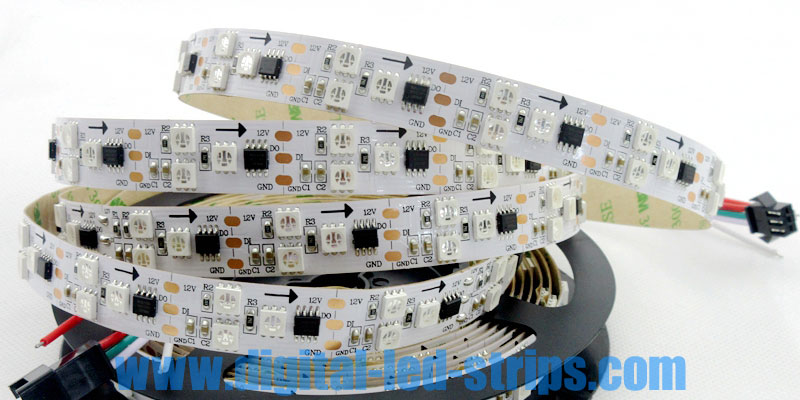

Big Pixel 12V 90LED WS2811 Addressable led strips

Overview:

Big Pixel 12V 90LED WS2811 Addressable led strips, 90led/m, Control IC built outside the LED, 30pixel/m, 12V, 24w/m, 15mm white or black PCB, 15cm JST connector;

Data sheet:

  Product:   Big Pixel 12V 90LED WS2811 Addressable led strips
  Item No.:   ADY-2811-90-1512
  LED:   WS2811-SMD5050-RGB, 90led/m
  View angle:  120°
  IC Chip:  WS2811
  Input voltage:  12V
  Power:  24w/m
  Size:  5000x15x2.2(mm), 5m/roll

Features

1) Addressable DC12V WS2811 LED Strips; Long life span 50,000+ hours;
2) Super bright 5050 SMD top LED, high intensity and reliability;
3) Addressable, each IC control three SMD5050-RGB LEDs;
4) WS2811 has 3 Wires input and output: Data, GND and Power+;
6) 3 leds one cut;
7) PWM 2KHz/m, Data transmit up to 800kbps, 256 grayscale effect;

Application:

> Widely used for home decoration use, hotels, clubs, shopping malls
> Architectural decorative lighting, boutique atmosphere lighting
> Extensively applied in background lighting, concealed lighting, channel letter lighting
> Emergency & security lighting, advertisement sign lighting
> Decorative lights for holiday, event, show exhibition
> Applicable for automobile and bicycle decoration, border or contour lighting

Remark:

1) Do not use any acidic, alkaline adhesive fixing Product;
2) It is prohibited to make products with a hard object collision, friction;
3) Do not use your fingers to press LED;
4) Don’t make positive and negative reversed;
5) Don’t install when product is working;
6) Installation, repair and maintenance must be made by professional Person;
7) Before you use them make sure the power supply voltage to meet the requirements and wire connection correctly.

 Order Info: (IP20/IP65/IP67/IP68)

SN Model Number LED Qty
(led/m)		 Pixel Qty
(Pixel/m)		 PCB Width
(mm)		 PCB
Color		 Operate
Voltage		 Power
(w/m)		 Packing
(m/roll)
1 ADY-2811-30-1012 30led/m 10 10 W/B 12V 6.6 5
2  ADY-2811-60-1012 60led/m 2010 W/B 12V 13.2 5
3 ADY-2811-90-1212 90led/m30 12W/B 12V 21.6 5
4  ADY-2811-90-1512 90led/m30 15 W/B 12V 24.0 5

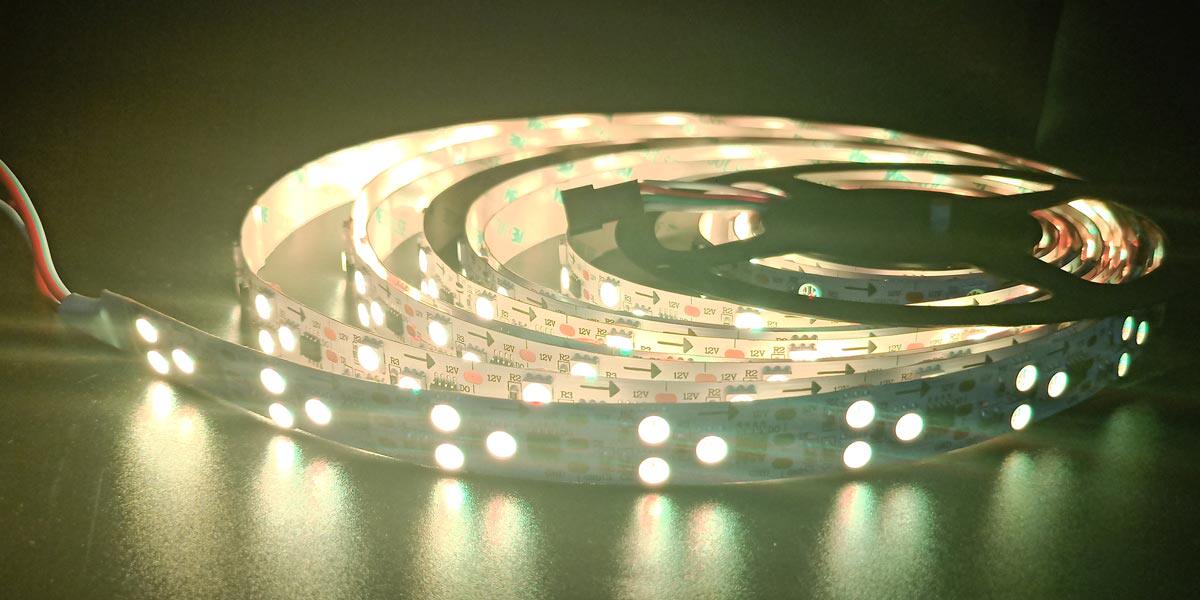

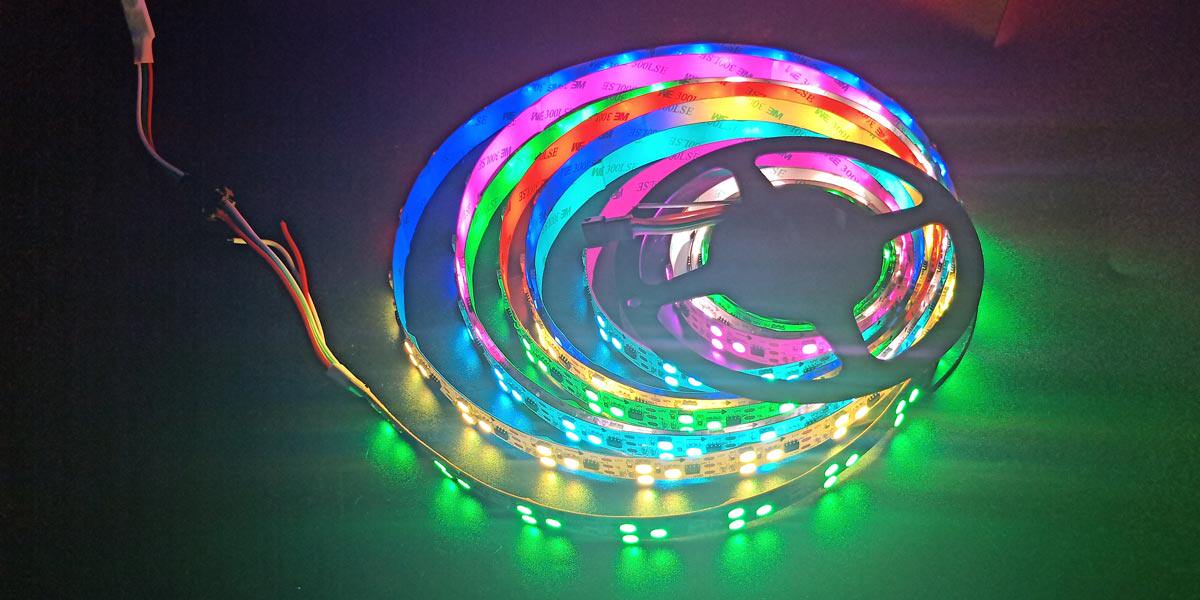

Photos

IP67 Waterproof version, with a weatherproof silicone tube
