Video | Mi light FUT092 RGBWW Remote Controller | FUT039 RGB RGBW CCT 5in1 LED Strip Controller | Allcoola Digital LED Strips

Video | Mi light FUT092 RGBWW Remote Controller | FUT039 RGB RGBW CCT 5in1 LED Strip Controller

Mi light FUT092 RGBWW Remote Controller | FUT039 RGB RGBW CCT 5in1 LED Strip Controller

Voltage: DC12V-24V
Output: Max. 6A/Channel, Total output Max.10A
2.4G RF Transmission Technology
4-Zone RGB RGBW Remote Control, can control led light, bulb, led downlight, led rail tracklight, led controller.
Size: 138 x 56 x 20mm
Power: 2x AAA Battery (Not include)
Control distance: 30M
Control qty: Countless, but only 4 groups
RGB+WW+CW Full Color Change
Brightness adjust
Group control multiple lights

Linking Instructions

1) Switch off the light, after 10 seconds switch on again
2) When the light on, short press any zone of “I” 3 times within 3 seconds
3) The light blink 3 times slowly means the linking is done successfully

Unlinking Instructions (Unlinking must be the same zone with the linking)

1) Switch off the light, after 10 seconds switch on again
2) When the light on, short press any zone of “I” 5 times within 3 seconds
3) The light blink 10 times quickly means the unlinking is done successfully

9 Modes List:

M1: Fire mode.
M2: Several colors gradual changing.
M3: Different Kelvin changing.
M4: RGB with color temperature gradual changing.
M5: Seven colors flash.
M6: Random colors flash.
M7: Red gradual changing + flash.
M8: Green gradual changing + flash.
M9: Blue gradual changing + flash.
Note: The colors can be dimming under any mode, the speed of any mode can be adjustable.
Mi light FUT092 RGBWW Remote Controller | FUT039 RGB RGBW CCT 5in1 LED Strip Controller

Package Included:

1pc * RGB+W+WW receiver
1pc * RGBWW Remote
Mi light FUT092 RGBWW Remote Controller | FUT039 RGB RGBW CCT 5in1 LED Strip Controller

Mi light FUT092 RGBWW Remote Controller | FUT039 RGB RGBW CCT 5in1 LED Strip Controller

More…

Turn on white light flow, turn off white light reflux Note: This controller is only suitable for 3-wire WS2811 or WS2812B light strips, and does not support magic light strips with CLK and DMX512 light strips 1) 3-key function description: Speed/brightness key: speed adjustment/brightness adjustment // Speed adjustment function when the light is on, and brightness adjustment function when the light is off. On / key: often press to change the direction of water flow ...

Dual Output SP601E Bluetooth Music LED Controller for Digital LED strips SP608E Bluetooth Pixel IC SPI Music LED Controller by Phone APP, not only suitable for Android, but also for IOS, too; Another key point, SP608E music controller support a lot of IC, like WS2812, SK6812, SM167103, UCS1903, and LPD8806 Strips; In addition, the SP608e music controller can be operated under DC5-24V; > 9 scenes adjustable
> The pixel length and speed are adjustable
> Three ...

Description: Firstly, H807SA adopts standard Ethernet protocol and supports Art-Net protocol. Secondly, 8 output ports, which can control a variety of LED driver chips, support the function of automatic address coding. Thirdly, Input ports can be directly connected to computer network cards, offline and on-line main control, as well as switches and photoelectric converters. Fourthly, H807SA support three modes, one is Artnet mode, one is SD card offline mode, the last one is DMX ...

Dual Output SP601E Bluetooth Music LED Controller for Digital LED strips SP601E Bluetooth Pixel IC SPI Music LED Controller by Phone APP, not only suitable for Android, but also for IOS, too; Another key point, SP601E music controller support a lot of IC, like WS2812, SK6812, SM167103, UCS1903, and LPD8806 Strips; In addition, the SP601e music controller can be operated under DC5-24V; > 9 scenes adjustable
> The pixel length and speed are adjustable
> Three control ...

ADY-809 LED Controller for Pixel LED Lights Description: Firstly, ADY-809 adopts standard Ethernet protocol and supports Art-Net protocol.
Secondly, 8 output ports, which can control a variety of LED driver chips, support the function of automatic address coding.
Thirdly, Input ports can be directly connected to computer network cards, offline and online main control, as well as switches and photoelectric converters.
Fourthly, ADY-809 support three modes, one is Artnet mode, one is SD card offline mode, and the ...

Hebei Huanghua Super Rabbit Club Case Show Hebei Huanghua Super Rabbit Party, located in Hebei Province, Honored by Treasure Management Co., Ltd., Pursue "Innate freedom, return to music", Opening soon, stay tuned. Product list:
SNItem descriptionQtyPriceNote 1GS1903 Rigid Digital led strips, 60led, 20pixel, 12VDC, IP20, 1m/pcs2000mN/A 2H802RA Artnet LED Controller20pcsN/A 3Madrix Lighting Software1pcsN/A 4Power supplier unit 12V400W90pcsN/A 5SM-3Pin Male/female extend cable 1000mm300pcsN/A 6Power cable200mN/A Photos show:
Visit the club:
河北黄骅超级兔子俱乐部 | ...

DMX512 Coder V6.0B V6.0C with video demonstration DMX512 address code writer selling points: 1) DMX512 decoding module channel address code writing;
2) Detect the DMX512 signal, diagnose the on-off of the engineering wiring, test the strength of the DMX512 signal, etc.;
3) All DMX512 decoder drivers of our company can write address codes;
4) DMX512 protocol LED lighting project, be sure to prepare a set, very useful; Body silk screen logo description: DC5V: power supply DC 5V ...

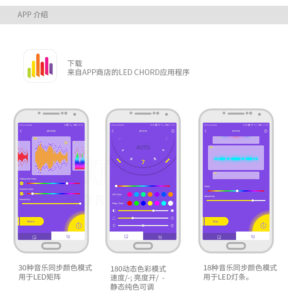

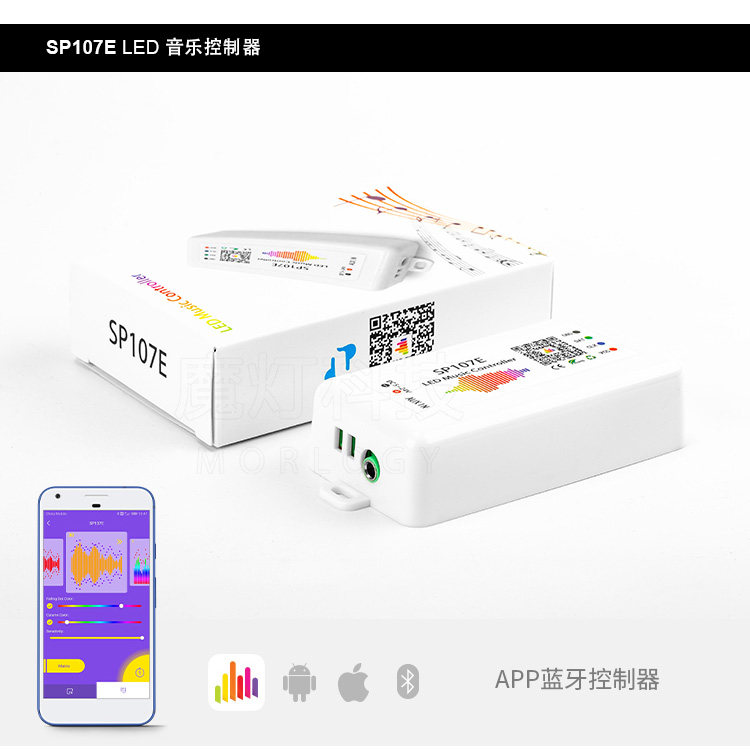

Bluetooth APP Control SP107E LED Music Controller 1) Features:
> App Control via Bluetooth 4.0,long Control distance,convenient to use;
> Support almost every kind of one-wire or two-wire led driver IC ;
> Brightness adjustable, With 200 kinds of patterns, which are vivid and beautiful;
> Support setting total pixel number,able tocontrol up to 2048 pixels;
> DC5V~24V wide working voltage,preventing reverse connection of power supply;
> User setting saving; 2) App: > The specialized App is available on both IOS and Android OS. (hardware should ...

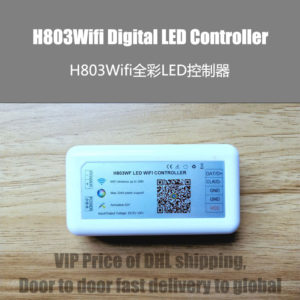

H803wifi LED SPI controller, which supports mobile APP control, also supports Artnet control. Can control LED magic color soft and hard light bar, LED pixel screen, LED special-shaped screen, LED full-color luminous character string, LED full-color module, LED fence tube, LED point light source, LED scene lighting, etc. Pattern styles include Video, pictures, single-line text, shutters, dripping water, rotation, rectangular diffusion, circular diffusion, moving to the left, moving up, moving to the left, moving in ...

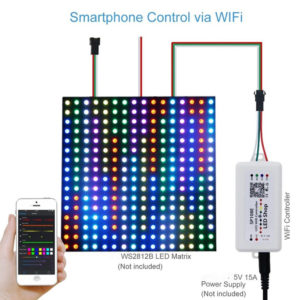

Introduction: SP108E controller realizes remote application control through WiFi, supports routing mode (AP) and LAN connection mode (STA), adjustable brightness, 180 patterns and 8 color adjustable patterns, creatively adopting images to effects The DIY arbitrary effect, DC5V~24V wide range of working voltage, to prevent reverse connection of power supply, user setting savings, suitable for clubs, bars, markets, cinemas, plazas, guest rooms, KTV, etc.
In addition: must be remembered, the SP108e LED controller don't support ...

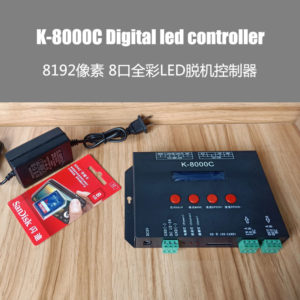

Offline 8 Ports K-8000C LED Controller Features: 1) 8 Ports drive maximum 8192 pixels. Each port control maximum 1024 pixels. (512 Pixels for DMX512 per port)
2) K-8000C works offline, the programmed content can be copy into the SD Card.
3) Good control effect, the grayscale level is under precise control.
4) The controller can be used in single or multiple cascades. The cascade adopts photoelectric isolation mode: anti-interference and better stability.
5) The distance between ...

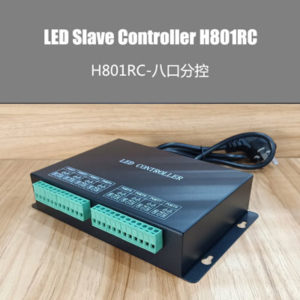

H801RC LED Controller: 8 Ports | Online or Offline | LED Slave Controller H801RC Features: (1) Eight ports drive maximum 8192 pixels. Each port control maximum 1024 pixels.
(2) H801RC works online or offline, H801RC can be connected to PC or master controller.
(3) Good control effect, grayscale level is under precisely control.
(4) Far transmission distance. Signal transmitted based on standard Ethernet protocol and the nominal transmission distance is 100 meters. Data sheet: Product: ...
