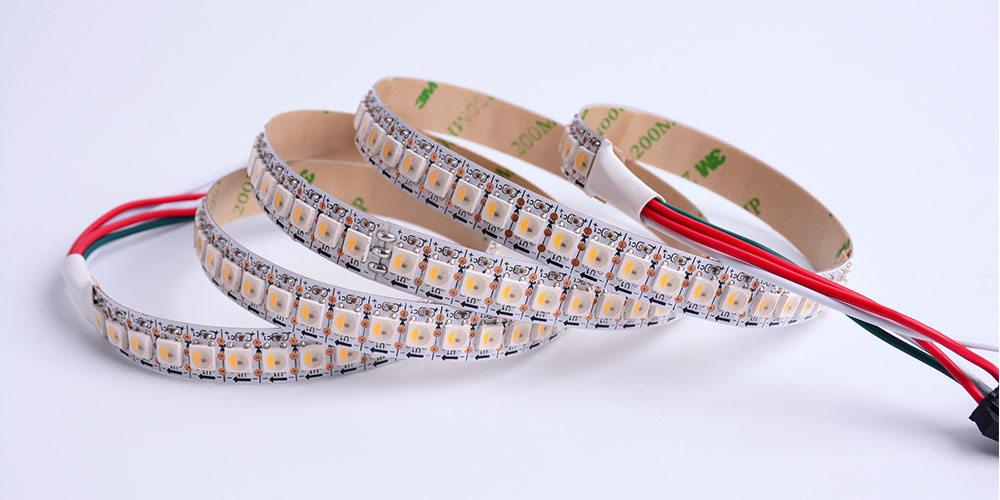

SK6812 RGBW RGBA Digital Led Light Strip
Overview:
SK6812 RGBW / RGBA Digital Led Light Strip, 60 led/m, Control IC built inside the LED, 60 pixel/m, 5V, 0.4w/led, 10 to 12mm white or black PCB, Absolutely addressable, each IC built inside a SMD5050-RGB LED;
SK6812RGBW is a smart LED control circuit and light emitting circuit in one controlled LED source, which has the shape of a 5050 LED chip. Each lighting element is a pixel, and the intensities of the pixels are contained within the intelligent digital interface input. The output is driven by patented PWM technology, which effectively guarantees high consistency of the color of the pixels. The control circuit consists of a signal shaping amplification circuit, a built-in constant current circuit, and a high precision RC oscillator.
The data protocol being used is unipolar NRZ communication mode. The 32-bit data is transmitted from the controller to DIN of the first element, and if it is accepted it is extracted pixel to pixel. After an internal data latch, the remaining data is passed through the internal amplification circuit and sent out on the DO port to the remaining pixels. The pixel is reset after the end of DIN. Using automatic shaping forwarding technology makes the number of cascaded pixels without signal transmission only limited by signal transmission speed.
The LED has a low driving voltage (which allows for environmental protection and energy saving), high brightness, scattering angle, good consistency, low power, and long life. The control circuit is integrated in the LED above.
Data sheet:
| Product: | SK6812 RGBW Digital Led Light Strip |
| Item No.: | WTP-6812RGBW-60 |
| LED: | SK6812-SMD5050-RGBW, 60led/m |
| View angle: | 120° |
| IC Chip: | WS2815 |
| Input voltage: | 5V |
| Power: | 24.0w/m |
| Size: | 5000x10x2.0(mm), 5m/roll |
Features
1) Addressable 5V SK6812 LED Strips; Long life span 50,000+ hours;
2) Super bright 5050 SMD top LED, high intensity and reliability;
3) Absolutely addressable, each IC built inside a SMD5050-RGB LED;
4) SK6812 has 3 Wires input and output: Data, GND and Power+; one LED died, the rest LEDs died too;
6) One led one cut;
7) PWM 2KHz/m, Data transmit up to 800kbps, 256 grayscale effect;
8) Each IC control one led, individual controllable;
Application:
> Widely used for home decoration use, hotels, clubs, shopping malls
> Architectural decorative lighting, boutique atmosphere lighting
> Extensively applied in background lighting, concealed lighting, channel letter lighting
> Emergency & security lighting, advertisement sign lighting
> Decorative lights for holiday, event, show exhibition
> Applicable for automobile and bicycle decoration, border or contour lighting
Remark:
1) Do not use any acidic, alkaline adhesive fixing Product;
2) It is prohibited to make products with a hard object collision, friction;
3) Do not use your fingers to press LED;
4) Don’t make positive and negative reversed;
5) Don’t install when product is working;
6) Installation, repair and maintenance must be made by professional Person;
7) Before you use them make sure the power supply voltage to meet the requirements and wire connection correctly.
Order Info: (IP20/IP65/IP67/IP68) |
||||||||
| SN | Model Number | LED Qty (led/m) |
Pixel Qty (Pixel/m) |
PCB Width (mm) |
PCB Color |
Operate Voltage |
Power (w/m) |
Packing (m/roll) |
| 1 | WTP-6812RGBWx30 | 30led/m | 30 | 10 | W/B | 5V | 12.0 | 5 |
| 2 | WTP-6812RGBWx60 | 60led/m | 60 | 10 | W/B | 5V | 24.0 | 5 |
| 3 | WTP-6812RGBWx96 | 96led/m | 96 | 10 | W/B | 5V | 38.4 | 5 |
| 4 | WTP-6812RGBWx144 | 144led/m | 144 | 12 | W/B | 5V | 57.6 | 1 |
Photos
