DMX512 SMD2835 70LED 1220 Size Silicone NEON Light

Overview:

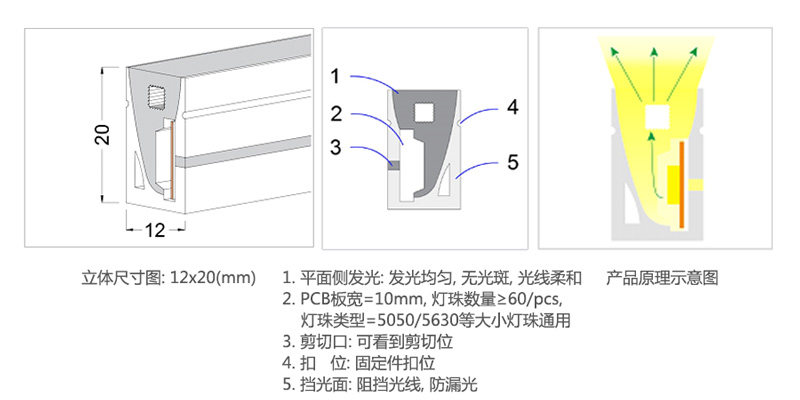

Firstly, DMX512 SMD2835 70LED 1220 Size Silicone NEON Light, Size 12mm x 20mm, inside with 70led/m SMD2835 and addressable DMX512 control IC flex led strip, 24V, 14w/m, 12mm width white PCB, RA80, 3000K-6500K, nice appearance finished;

Secondly, It is available to build inside all led strips with 10-12mm PCB, such as SMD2835, SMD3528, addressable SK6812-3535-RGB, programmable WS2813-5050-RGB, and so on.

Lastly, we have many sizes of NEON tubes for optional, such as 0815, 1616, 1220, 1023, 1225, 2020, ETC.

Data sheet:

Product:	DMX512 SMD2835 70LED 1220 Size Silicone NEON Light
Item No.:	ADY-1220-DMX2835-70-1224;
LED:	SMD2835-White, 70led/m
View angle:	170°
Waterproof Grade:	IP67
Input voltage:	24V
Power:	14w/m
Size:	5000x12x20(mm), 5m/roll

Application:

> Applicated in linear lighting, home/bar/Christmas decorating, showcase exhibiting.
> It is widely used for indoor decoration, signs, back lighting and led lighting, etc.
> Waterproof LED strips for furniture decorating

Remark:

1) Do not use any acidic, alkaline adhesive fixing Product;
2) It is prohibited to make products with a hard object collision, friction;
3) Do not use your fingers to press LED;
4) Don’t make positive and negative reversed;
5) Don’t install when product is working;
6) Installation, repair and maintenance must be made by professional Person;
7) Before you use them make sure the power supply voltage to meet the requirements and wire connection correctly.
