160lm/w 128LED SMD2835 High Efficiency LED Strip

160lm/w High Efficiency LED Strip
160lm/w High Efficiency LED Strip

Features and Description:

> 160lm/w High Efficiency LED Strip.  100% Brand New.
> Super bright 2835SMD top LED, high intensity and reliability.
> Continuous length, packed with 5 meter.
> Cuttable every marked along the cutting marks, according to practical requirement.
> Long life span 50,000+ hours
> Flexible ribbon for curving around bends
> Low power consumption
> Completely smooth and even light spread, solving the uneven luminous problem
> Ultra-bright but running at low temperature
> High brightness, low power, long life, easy installation, the production of highly customizable,
> Easy for transporting, decorative effect is brilliant, energy saving, environmental protection.

Data sheet:

  Product:   160lm/w High Efficiency LED Strip
  Model No.:   ADU-2835-128HE-1024
  LED:   SMD2835, 128LED/m, RA80/RA90, 1800K-6500K
  View Angle:   120°
  PCB:   4oz 10mm white Flexible PCB
  Electrical properties:   DC24V, 11.52w/m
  Packing:   5m/roll, 5000 x 10 x 1.8(mm)
  Warranty:   3 Years

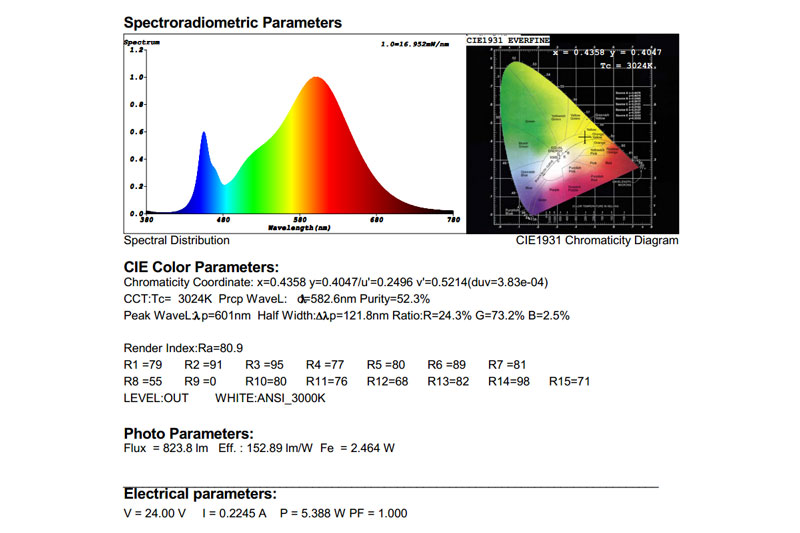

Spectroradiometric Parameters:



Photos show:

160lm/w High Efficiency LED Strip
Super bright 2835SMD

You are free to order the following SMD 2835 Flex led strips:

 SN  Model No.  Description  Marks
  1  ADY-2835-30-08xx  SMD2835, 30LED/m, 12V/24V, 8mm white PCB  Normal
  2  ADY-2835-60-08xx  SMD2835, 60LED/m, 12V/24V, 8/10mm white PCB  Normal
  2  ADY-2835-60S-06xx  SMD2835, 60LED/m, 12V/24V, 6mm white PCB  S-type
  3  ADY-2835-120-xxxx  SMD2835, 120LED/m, 12V/24V, 5/10mm white PCB  Normal
  4  ADY-2835-120GW-08xx  SMD2835, 120LED/m, 12V/24V, 8mm white PCB  Great-wall type
  5  ADY-2835-240-10xx  SMD2835, 240LED/m, 12V/24V, 10mm white PCB  High density
  6  ADY-2835-60HL-1024  SMD2835, 60LED/m, 24V, 10mm white PCB, 10m/roll  Constant current
  7  ADY-2835-60HL-1524  SMD2835, 60LED/m, 24V, 15mm white PCB, 15m/roll  Constant current
  8  ADY-2835-120HL-1024  SMD2835, 120LED/m, 24V, 10mm white PCB, 10m/roll  Constant current
  9  ADY-2835-70HL-1024  SMD2835, 70LED/m, 24V, 10mm white PCB, 30m/roll  Constant current
  10  ADY-2835-120F2-1024  SMD2835, 120LED/m, 24V, 10mm white PCB, 10m/roll  Color Adjustable

1) Optional CRI: 80, 90, 95
2) Optional Color temperature: 1800K to 6500K
3) Optional Voltage: 5V/12V/24V/36V/48V
4) Optional Power: 0.03w/led to 0.20w/led
5) Optional Waterproof grade: IP20, IP65, IP67, IP68
6) Constant current: Powered at one side, keep same brightness from the begin to the end in a certain length.

Comparison between 3528 LEDs and 5050 LEDs: What are SMD 3528 and SMD 5050 LEDs?

Though 5050 and 3528 SMD LEDs were the most popular on the market for strip lights, the LED market has changed rapidly over the past few years. Today, there are many LED chips available that are brighter and also more efficient. The 3020 SMD LED chips in our High CRI UltraBright Series and 3014 SMD LED chips in our Architectural Ultra Bright and Design Series Ultra Bright LED strip lights are smaller and more efficient than their predecessors. Because the LED sizes are much smaller, we were able to fit many more of them onto the strip lights, thus creating blindingly bright LED strips. Our Industrial LED strip lights use a new advanced 2835 chip.
