10m IP65 SMD 5050 Flex LED Tape
Overview:
10m IP65 SMD 5050 Flex LED Tape, 60LED/m, 10mm white PCB, 5050 SMD, 12V/24V, 1800K to 6500K.
The SMD5050 Series are of the Brightest LED strips in the world! Though 5050 and 3528 SMD LEDs were the most popular on the market for strip lights, the LED market has changed rapidly over the past few years. Today, there are many LED chips available that are brighter and also more efficient.
Data sheet: |
|
| Product: | 10m IP65 Waterproof SMD5050 Flexible LED Tape |
| Item No.: | WTP-5050X60-12V |
| LED: | SMD5050-White, 60led/m, CRI>80, 1800k-6500K |
| View angle: | 120° |
| Waterproof Grade: | IP65 with Silicone gel coating |
| Input voltage: | 12V / 24V |
| Power: | 14.4w/m (The power consumption can be designed from 3w/m to 16w/m to meet your project) |
| Size: | 10000x12x2.5(mm), 10m/roll |
Features
1) Big size: SMD5050 RA80+ SMD LED, RA90 and RA95 for optional
2) Strong body
3) Design flexibility: 30LED/meter, 60LED/m, 120LED/m, and Colour temperrature adjustable led tapes.
4) Better color consistency
6) Very competitive price
Application:
> Applicated in linear lighting, home/bar/Christmas decorating, showcase exhibiting.
> It is widely used for indoor decoration, signs, back lighting and led lighting, etc.
> Waterproof LED strips for furniture decorating
Remark:
1) Do not use any acidic, alkaline adhesive fixing Product;
2) It is prohibited to make products with a hard object collision, friction;
3) Do not use your fingers to press LED;
4) Don’t make positive and negative reversed;
5) Don’t install when product is working;
6) Installation, repair and maintenance must be made by professional Person;
7) Before you use them make sure the power supply voltage to meet the requirements and wire connection correctly.

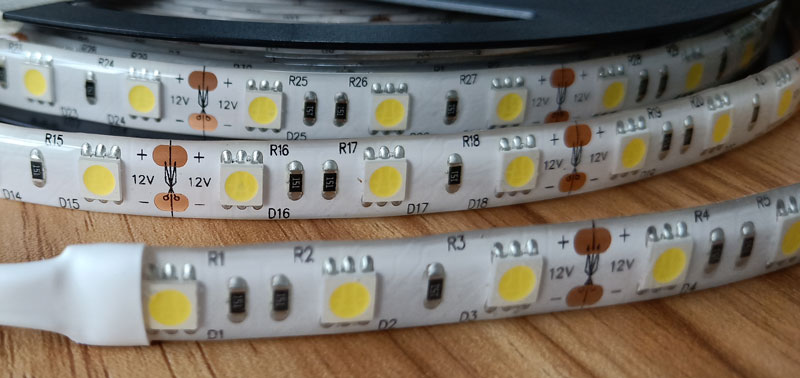

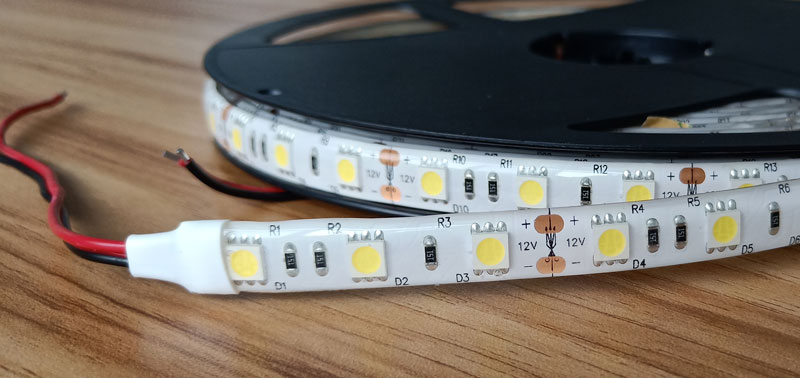

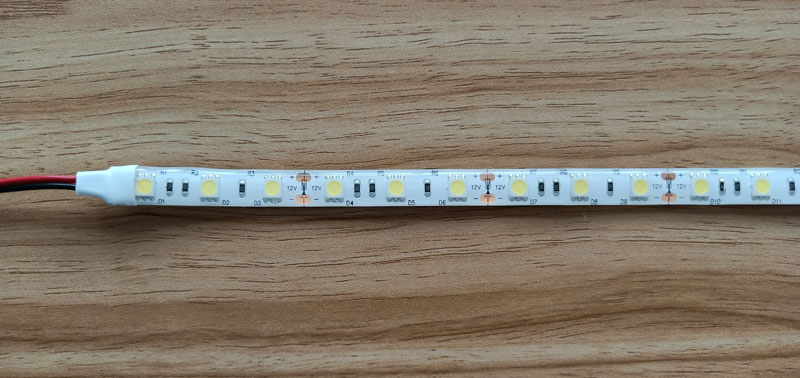

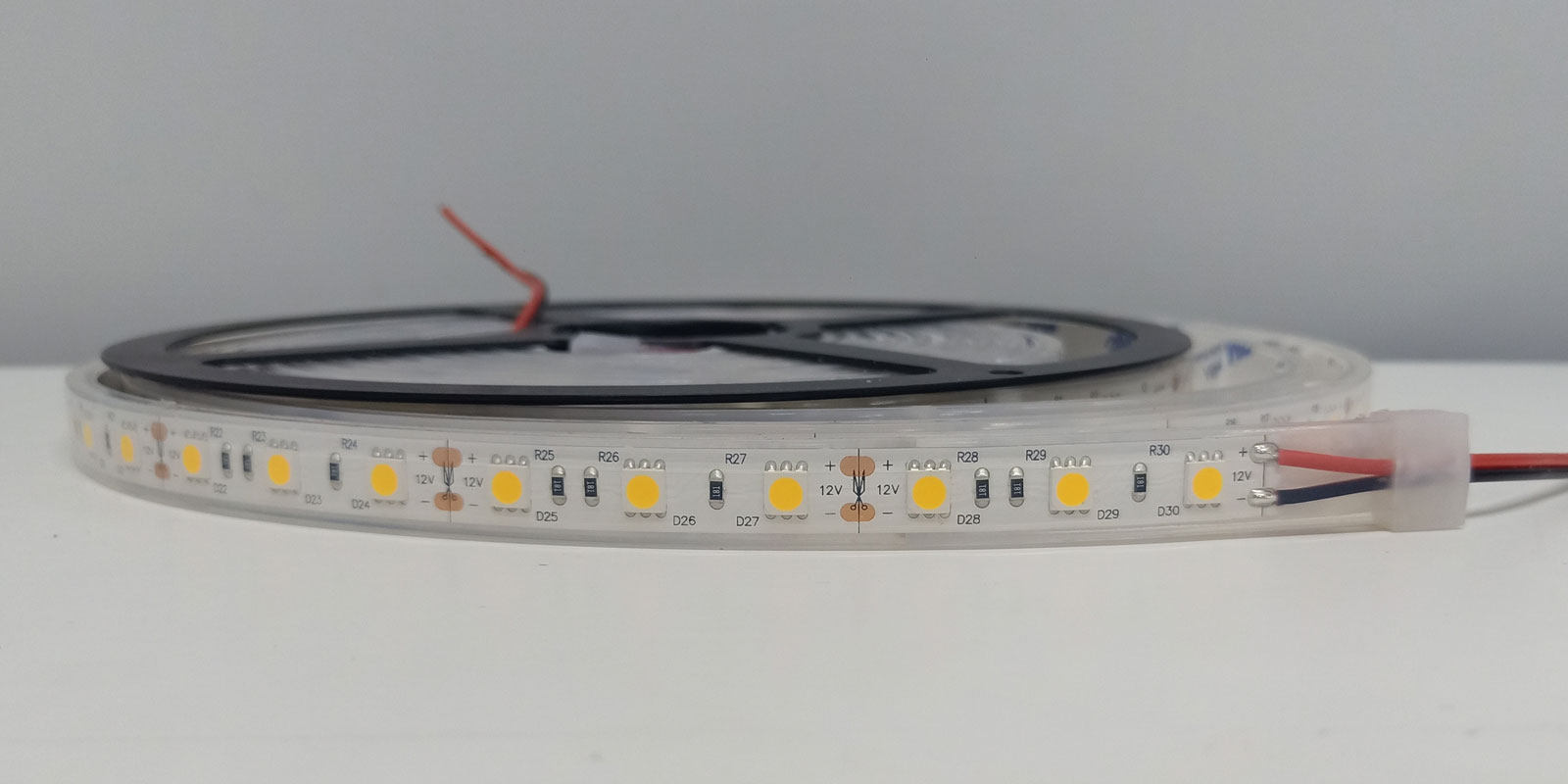

Photos
How many lumens is a 5050 SMD LED?
On SMD LED lights, lumens are simply calculated per chip. Larger 5050 SMD LED chips are rated at 15 lumens per chip. Our most common 5050 bulb uses 60 chips, so its calculated lumen output is 900 lumens (15 x 60 = 900 lumens).
