Offline 8 Ports K-8000C LED Controller
Features:
1) 8 Ports drive maximum 8192 pixels. Each port control maximum 1024 pixels. (512 Pixels for DMX512 per port)
2) K-8000C works offline, the programmed content can be copy into the SD Card.
3) Good control effect, the grayscale level is under precise control.
4) The controller can be used in single or multiple cascades. The cascade adopts photoelectric isolation mode: anti-interference and better stability.
5) The distance between the two K-8000C can reach 150 meters. It needs 0.5 square copper power supply lines.
6) IC Controller for DMX Lamps with Writing Address Function
7) The K-8000C LED controller has 22 kinds of test patterns
Support ICs:
00: UCS1903,1909,1912,2903,2904, 2909,2912; TM1803,1804,1809,1812；SM16703, 16709,16712; SK6805;
00: WS2811, WS2812, WS2813, WS2815,WS2818；INK1003; LX3203, 1603, 1103; GS8205,8206; SK6812;
01: SM16716,16726 02: P9813 03: LPD6803 04: LX1003,1203 05: WS2801 06: LPD1886
07: TM1913 08: TM1914 09: P9883,P9823 10: DMX512(UCS512*, SM1651*, SM1751*, TM512)
11: DMX 500K 14: UCS5603 15: 5603A 16: 5603B 17: TM1814 19: APA102 20: UCS8904 21: SM16714 22: SM16813

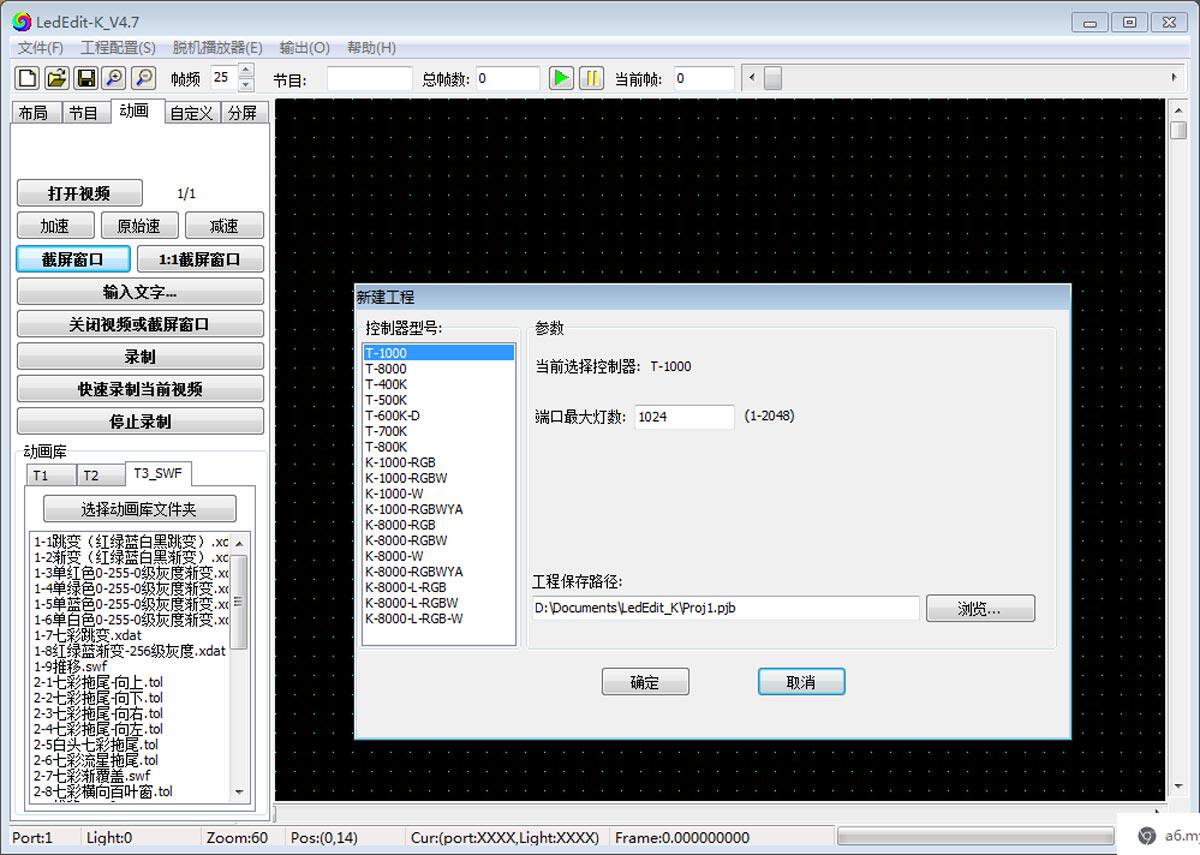

LED Edit Software: LedEdit-K-V4.7
Wiring diagram:
Data sheet:
| Product: | Offline 8 Ports K-8000C LED Controller |
| Model No.: | K-8000C |
| Controllable: | Can drive 8192 Pixels with 8 ports (1024Pixels/port) |
| Input Volage: | DC 5-24V |
| Consumption: | 5W |
| Net weight: | 0.80kg/pcs |
| Dimension: | 180 x 120 x 30(mm) |
| Supported driver chips: | Almost all of the digial led chips, including single SPI, Double SPI, DMX512, and more |
Tags: K-8000C,K8000C,led controller
