Allcoola Digital LED Strips
|
8 Ports | Online or Offline | LED Slave Controller H801RC
H801RC LED Controller:
Features:
(1) Eight ports drive maximum 8192 pixels. Each port control maximum 1024 pixels.
(2) H801RC works online or offline, H801RC can be connected to PC or master controller.
(3) Good control effect, grayscale level is under precisely control.
(4) Far transmission distance. Signal transmitted based on standard Ethernet protocol and the nominal transmission distance is 100 meters.
Data sheet:
| Product: | 8 Ports | Online or Offline | LED Slave Controller H801RC |
| Model No.: | H801RC |
| Controllable: | Can drive 8192 Pixels with 8 ports (1024Pixels/port) |
| Input Volage: | AC100-240V |
| Consumption: | 1.5W |
| Net weight: | 0.70kg/pcs |
| Dimension: | 189 x 123 x 40(mm) |
| Supported driver chips: | Almost all of the digial led chips, including single SPI, Double SPI, DMX512, and more |
Photos:

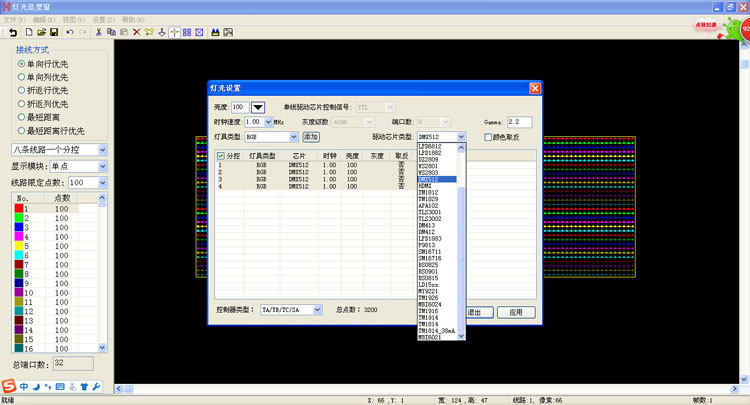

Supported Driver Chips:
LPD6803, LPD8806, LPD6812, LPD6813, LPD1882, LPD1889, LPD1883, LPD1886, DMX512, HDMX, APA102, P9813, LD1510, LD1512, LD1530, LD1532, UCS6909, UCS6912, UCS1903, UCS1909, UCS1912, WS2801, WS2803, WS2811, WS2812, DZ2809, SM16716, TLS3001, TLS3002, TM1812, TM1809, TM1804, TM1803, TM1914, TM1926, TM1829, TM1906, INK1003, BS0825, BS0815, BS0901, LY6620, DM412, DM413, DM114, DM115, DM13C, DM134, DM135, DM136, 74HC595, 6B595, MBI6023, MBI6024, MBI5001, MBI5168, MBI5016, MBI5026, MBI5027, TB62726, TB62706, ST2221A, ST2221C, XLT5026, ZQL9712, ZQL9712HV, etc.
Note: H801RC can support more than the chips listed above(for example UCS2903 has the same sequence diagram with UCS1903, H801RC supports them all).
At last, please send us a message if you have any questions. Click here to leave a inquiry
