High Density 144LED Per Meter WS2813B Digital LED Strips

High Density 144LED Per Meter WS2813B Digital LED Strips

High Density 144LED Per Meter WS2813B Digital LED Strips

Overview:

High Density 144LED Per Meter WS2813B Digital LED Strips, Breakpoint Continue, Individual Addressable, 144led/m, Control IC built inside the LED, 144pixel/m, 5V, 43.2w/m, 12mm white or black PCB, 15cm JST connector;

Data sheet:
  Product:   High Density 144LED Per Meter WS2813B Digital LED Strips
  Item No.:    WTP-2813X144-5V-IP20
  LED:    WS2813-SMD5050-RGB, 144led/m
  View angle:   120°
  IC Chip:   WS2813
  Input voltage:   5V
  Power:   43.2w/m
  Size:   5000x12x2.0(mm), 5m/roll

Features

1) Addressable DC5V WS2813 LED Strips; Long life span 50,000+ hours;
2) Super bright 5050 SMD top LED, high intensity and reliability;
3) Absolutely addressable, each IC built inside a SMD5050-RGB LED;
4) WS2813 has 4 Wires input and output: Datax2, GND and Power+; one LED died, the rest LEDs can keep working;
6) One led one cut;
7) PWM 2KHz/m, Data transmit up to 800kbps, 256 grayscale effect;
8) Each IC control one led, individual controllable;

LED Strip wiring diagram WS2813
Application:

> Widely used for home decoration use, hotels, clubs, shopping malls
> Architectural decorative lighting, boutique atmosphere lighting
> Extensively applied in background lighting, concealed lighting, channel letter lighting
> Emergency & security lighting, advertisement sign lighting
> Decorative lights for holiday, event, show exhibition
> Applicable for automobile and bicycle decoration, border or contour lighting

Remark:

1) Do not use any acidic, alkaline adhesive fixing Product;
2) It is prohibited to make products with a hard object collision, friction;
3) Do not use your fingers to press LED;
4) Don’t make positive and negative reversed;
5) Don’t install when product is working;
6) Installation, repair and maintenance must be made by professional Person;
7) Before you use them make sure the power supply voltage to meet the requirements and wire connection correctly.

  Order Info: (IP20/IP65/IP67/IP68)
SN Model Number LED Qty
(led/m)		 Pixel Qty
(Pixel/m)		 PCB Width
(mm)		 PCB
Color		 Operate
Voltage		 Power
(w/m)		 Packing
(m/roll)
1  WTP-2813RGBx30 30led/m 30 10 W/B 5V 9.0 5
2  WTP-2813RGBx60 60led/m 60 10 W/B 5V 18.0 5
3  WTP-2813RGBx96 96led/m 96 10 W/B 5V — 5
4  WTP-2813RGBx144 144led/m 144 12 W/B 5V 43.2 1

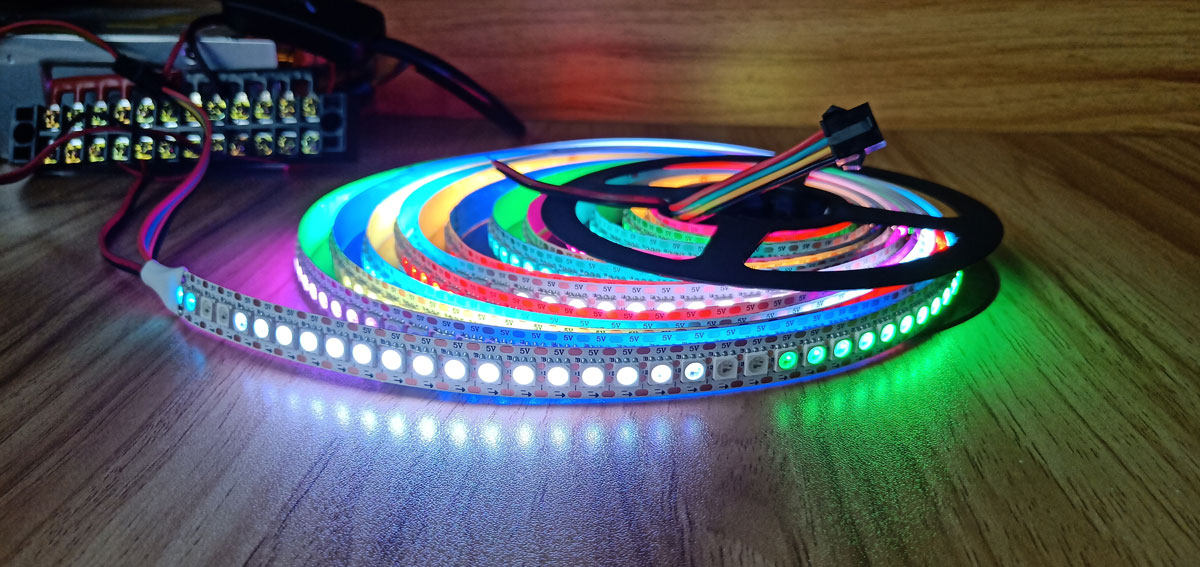

Photos

FeaturesHigh Density 144LED Per Meter WS2813B Digital LED Strips5V 144LED SMD5050 RGB Double SPI WS2813 Digital Led StripsWS2813 Digital Led StripsSMD5050 RGB Double SPI WS2813 Digital Led StripsSMD5050 RGB Double SPI WS2813 Digital Led Strips
