APA102 5050 RGB Clock Synchronization Addressable Flex led strips

APA102-144LED/m

APA102 5v 30leds 60leds 90leds 144leds Individual Control and Clock Synchronization Addressable Flex led strips

Overview:

APA102 5v 144leds Individual Control and Clock Synchronization Addressable Flex led strips, 144led/m, Control IC built inside the LED, 144pixel/m, 5V, 43.2w/m, 12mm white or black PCB, 15cm JST connector;

Data sheet:

  Product:   APA102 5v 144leds Individual Control and Clock Synchronization Addressable Flex led strips
  Item No.:    ADY-APA102-144-1205
  LED:    APA102-SMD5050-RGB-144led/m
  View angle:   120°
  IC Chip:   APA102
  Input voltage:   5V
  Power:   43.2w/m
  Size:   5000x12x2.0(mm), 1m/roll

Features:

1) Addressable DC5V APA102 LED Strips; Long life span 50,000+ hours;
2) Super bright 5050 SMD top LED, high intensity and reliability;
3) Absolutely addressable, each IC built inside a SMD5050-RGB LED;
4) APA102 has 4 Pins input and output: Data, Clock, GND and Power+;
6) One led one cut;
7) PWM 2KHz/m, Data transmit up to 800kbps, 256 grayscale effect;
8) Each IC control one led, individual controllable;

Application:

> Widely used for home decoration use, hotels, clubs, shopping malls
> Architectural decorative lighting, boutique atmosphere lighting
> Extensively applied in background lighting, concealed lighting, channel letter lighting
> Emergency & security lighting, advertisement sign lighting
> Decorative lights for holiday, event, show exhibition
> Applicable for automobile and bicycle decoration, border or contour lighting

Remark:

1) Do not use any acidic, alkaline adhesive fixing Product;
2) It is prohibited to make products with a hard object collision, friction;
3) Do not use your fingers to press LED;
4) Don’t make positive and negative reversed;
5) Don’t install when product is working;
6) Installation, repair and maintenance must be made by professional Person;
7) Before you use them make sure the power supply voltage to meet the requirements and wire connection correctly.

Order Info: (IP20/IP65/IP67/IP68)

SN Model Number LED Qty Pixel Qty PCB Width Voltage Power Packing
1  ADY-APA102-30-1005 30led/m 30Pixel/m 10mm 5V 9.0w/m 5m/roll
2  ADY-APA102-60-1005 60led/m 60Pixel/m 10mm 5V 18.0w/m 5m/roll
3  ADY-APA102-60-1005 96led/m 96Pixel/m 10mm 5V 28.8w/m 5m/roll
4  ADY-APA102-144-1205 144led/m 144Pixel/m 12mm (4oz) 5V 43.2w/m 1m/roll

Photos show:

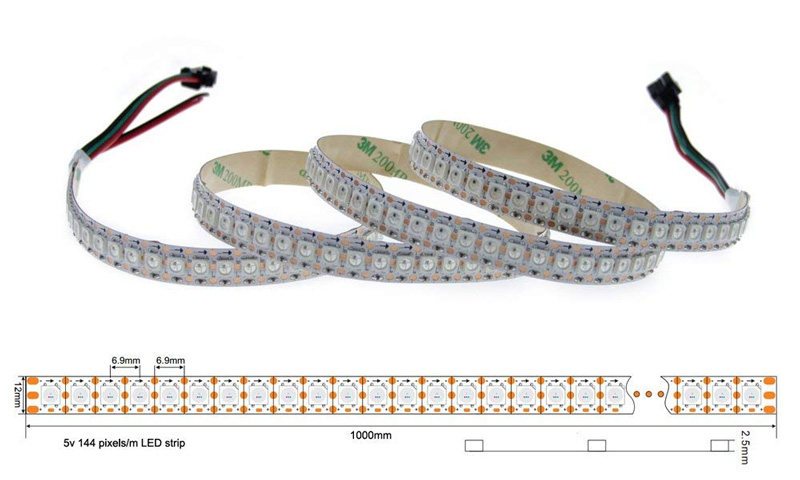

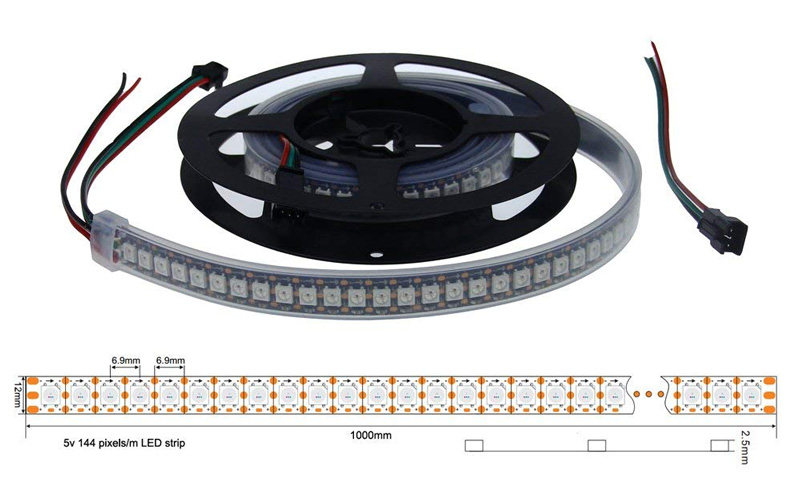

Dimension
12mm 4oz White PCB

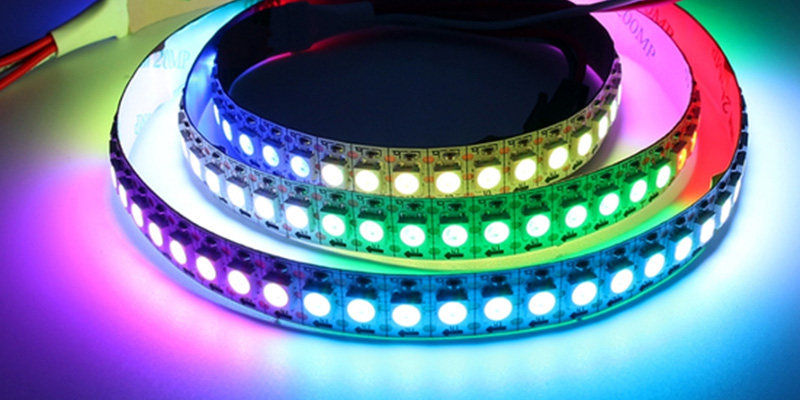

APA102 144leds Individual Control and Clock Synchronization Addressable Flex led strips

IP20 None Waterproof

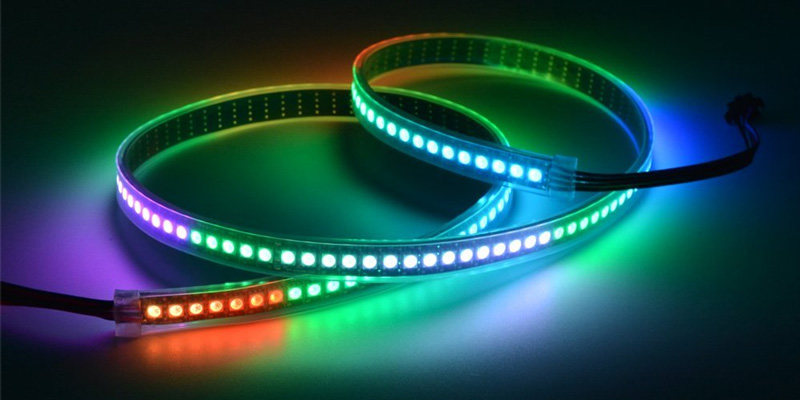

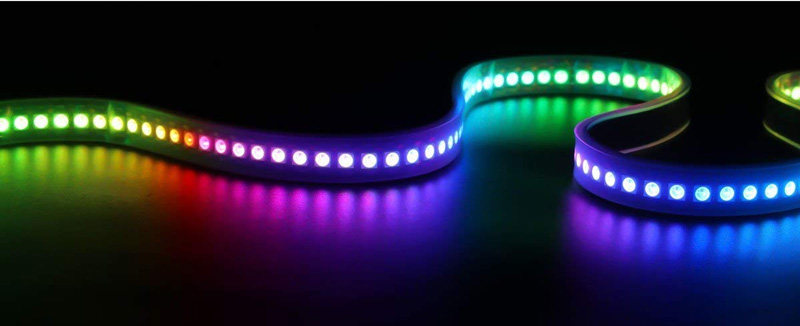

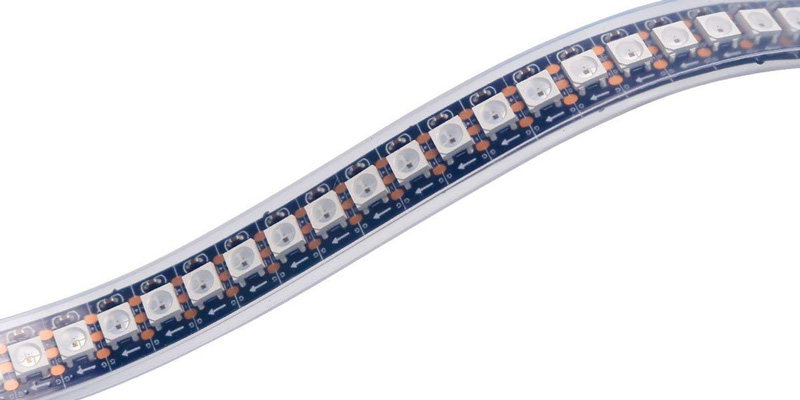

IP67 Silicone Tube Waterproof / Weatherproof Tubing
